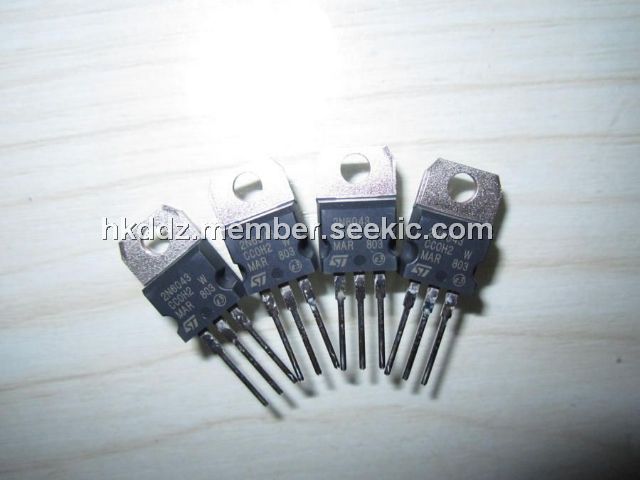

Product Summary

The 2N6043 is a Plastic Medium-Power Complementary Silicon Transistor. It is designed for general–purpose amplifier and low–speed switching applications.

Parametrics

2N6043 absolute maximum ratings: (1)Collector–Emitter Voltage VCEO: 60 Vdc; (2)Collector–Base Voltage VCB: 60 Vdc; (3)Emitter–Base Voltage VEB: 5.0 Vdc; (4)Collector Current – Continuous, IC: 8.0Adc; Peak: 16Adc; (5)Base Current IB: 120 mAdc; (6)Total Power Dissipation, PD: 75Watts; (7)Operating and Storage Junction, Temperature Range, TJ, Tstg: –65 to +150℃.

Features

2N6043 features: (1)High DC Current Gain: hFE = 2500 (Typ) @ IC = 4.0 Adc; (2)Collector–Emitter Sustaining Voltage: VCEO(sus) = 60 Vdc (Min); (3)Low Collector–Emitter Saturation Voltage, VCE(sat) = 2.0 Vdc (Max) @ IC = 4.0 Adc; (4)Monolithic Construction with Built–In Base–Emitter Shunt Resistors.

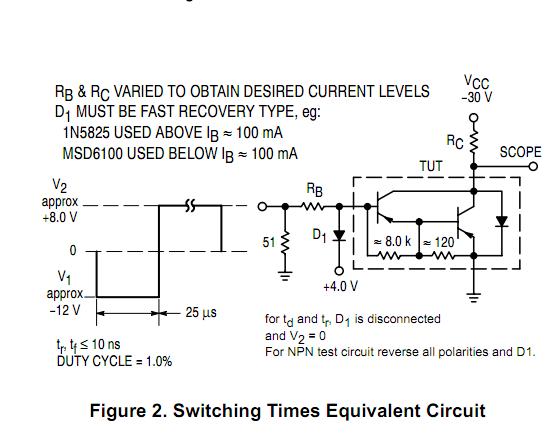

Diagrams

2N6043 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2N6043
2N6043
Central Semiconductor
Transistors Darlington NPN Darl SW
Data Sheet
0-1: $2.64
1-25: $2.43
25-100: $2.11
100-250: $1.90
2N6043G
2N6043G
ON Semiconductor
Transistors Darlington 8A 60V Bipolar Power NPN
Data Sheet
0-1: $0.52
1-25: $0.40
25-100: $0.31
100-500: $0.26
