Product Summary
The UPD784936AGF-162-3BA is a 16-Bit Single-Chip Microcontroller. The UPD784936AGF-162-3BA consists of 78K/IV Series products that combine a 78K/IV Series CPU core enabling mounting large-capacity memory and a IEBusTM (Inter Equipment BusTM) controller.
Features
UPD784936AGF-162-3BA features: (1)High-speed instruction execution; (2)Minimum instruction execution time: 320 ns (@ 6.29-MHz operation)160 ns (@ 12.58-MHz operation); (3)Instruction set suitable for control applications; (4)Data memory expansion function (1-Mbyte memory space: 2 bank specification pointers); (5)Interrupt controller (4-level priority system); (6)Vectored interrupt service/macro service/context switching; (7)Standby functions: HALT/STOP/IDLE modes.

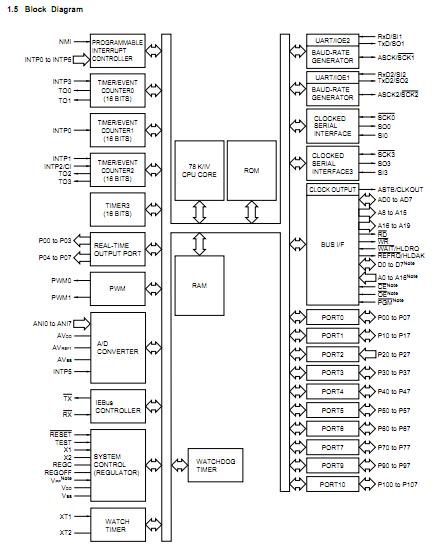

Diagrams
 |
