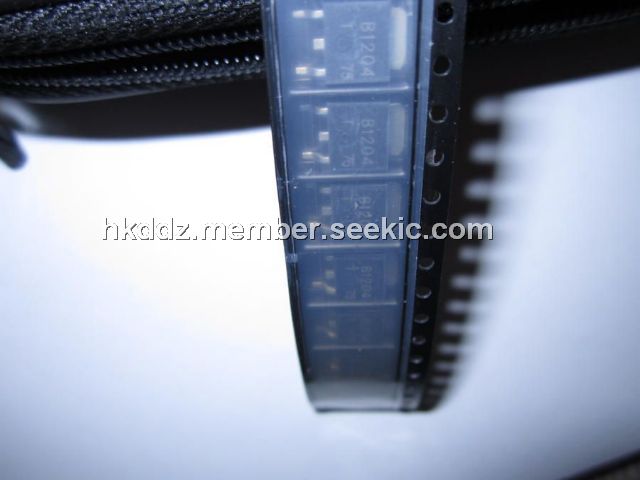

Product Summary

The 2SB1204 is a PNP epitaxial planar silicon transistor. The applications are relay drivers, high-speed inverters, converters, and other general high-current switching applications.

Parametrics

2SB1204 absolute maximum ratings: (1)collector to base voltage, VCBO: -60V; (2)collector to emitter voltage, VCEO: -50V; (3)emitter to base voltage, VEBO: -6V; (4)collector current, IC: -8A; (5)collector dissipation, PC: 1W; (6)junction temperature, Tj: 150℃; (7)storage temperature, Tstg: -55 to 150℃.

Features

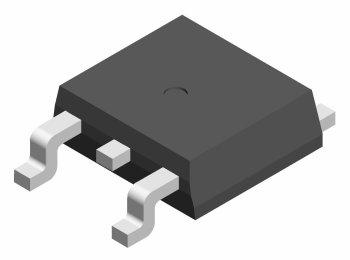

2SB1204 features: (1)low collector-to-emitter saturation voltage; (2)high current and high fT; (3)excellent linearity of hFE; (4)fast switching time; (5)small and slim package.

Diagrams

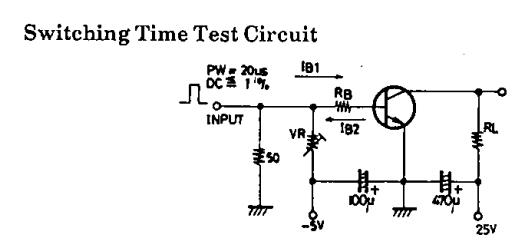

2SB1204 test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2SB1204
2SB1204
Other

Data Sheet
Negotiable
2SB1204S-E
2SB1204S-E
ON Semiconductor
Transistors Bipolar (BJT) BIP PNP 8A 50V
Data Sheet
0-1: $0.90
1-25: $0.81
25-100: $0.71
100-250: $0.62
2SB1204S-TL-E
2SB1204S-TL-E
ON Semiconductor
Transistors Bipolar (BJT) LOW-SATURATION VOLTAGE
Data Sheet
0-1: $0.58
1-10: $0.47
10-100: $0.41
100-250: $0.36
2SB1204T
2SB1204T
Other

Data Sheet
Negotiable
2SB1204T-E
2SB1204T-E
ON Semiconductor
Transistors Bipolar (BJT) BIP PNP 8A 50V
Data Sheet
0-1: $0.90
1-25: $0.81
25-100: $0.71
100-250: $0.62
2SB1204T-TL-E
2SB1204T-TL-E
ON Semiconductor
Transistors Bipolar (BJT) BIP PNP 8A 50V
Data Sheet
0-1: $0.90
1-25: $0.81
25-100: $0.71
100-250: $0.62
