Product Summary

The ES6688FAF is a highly integrated single-chip DVD solution that integrates read channel, ECC, Servo DSP, MCU, and MPEG-2 decoder that has a state-of-the-art 480p/576p progressive-scan video feature to provide brilliant and sharp, flicker-free video output, and S/PDIF input and output support.

Features

Features: (1)Single-chip DVD processor incorporating all front-end and back-end functions; (2)Unified memory architecture; (3)Proven focusing, sledding, tracking, and CLV/CAV spindle servo control; (4)Proven ECC, EFM/EFM+ demodulation, and EDC circuit; (5)Built-in ADCs and DACs for servo control signals; (6)Direct interface to the ES6603 servo AFE chip; (7)Integrated NTSC/PAL encoder with pixel-adaptive de-interlacer and three 10-bit 54 MHz video DACs; (8)DVD-Video, DVD-VR, VCD 1.1 and 2.0, and SVCD; (9)Full DVD-Audio support including MLP and LPCM decode, CPPM decryption, and watermark detection; (10)Media playback with CD-ROM, CD-R/RW, DVD-R/RW,and DVD+R/RW; (11)Up to 7.1 channel audio outputs; (12)Direct interface of 16-bit DRAM up to 128-Mb capacity; (13)Direct interface for up to 4 banks of 8-bit EPROM or Flash EPROM for up to 4 MB per bank; (14)Macrovision 7.1 for NTSC/PAL interlaced video; (15)Macrovision AGC 1.03-compliant for 480p progressive scan video; (16)Simultaneous composite, S-video and YUV outputs; (17)CCIR 656/601 YUV 4:2:2 output; (18)OSD controller supports 256 colors in 8 degrees of transparency.

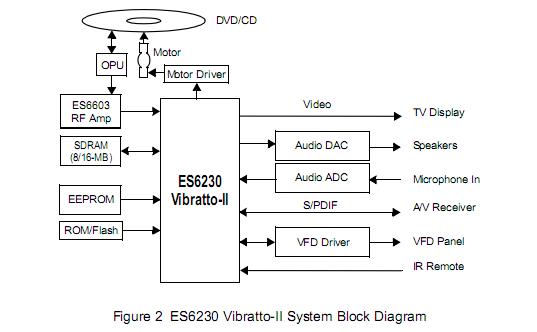

Diagrams

ES6629
ES6629
Other

Data Sheet
Negotiable
