Product Summary

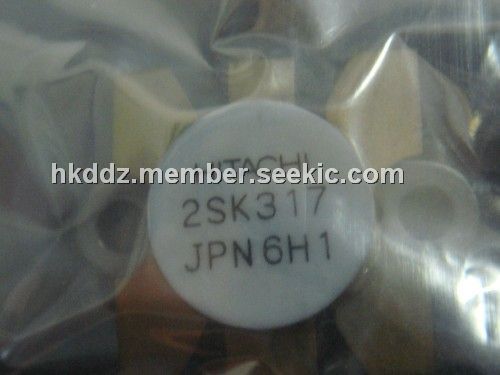

The 2SK317 is a Silicon N Channel MOS FET.

Parametrics

2SK317 absolute maximum ratings: (1)Drain to source voltage, VDSS: 200 V; (2)Gate to source voltage, VGSS: ±20 V; (3)Drain current, ID: 15 A; (4)Drain peak current, ID(pulse): 60 A; (5)Body-drain diode reverse drain current, IDR: 15 A; (6)Avalanche current, IAP: 15 A; (7)Avalanche energy, EAR: 15 mJ; (8)Channel dissipation, Pch: 35 W; (9)Channel temperature, Tch: 150℃; (10) Storage temperature, Tstg: –55 to +150℃.

Features

2SK317 features: (1)Low on-resistance RDS = 90 mΩ typ; (2)High speed switching; (3)4 V gate drive device can be driven from 5 V source.

Diagrams

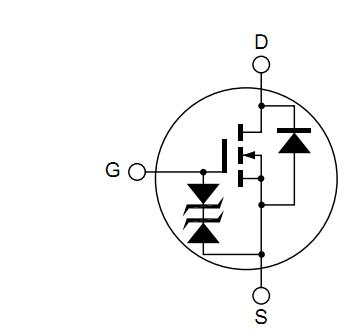

2SK317 block diagram
