Product Summary

The 03P4J-T1 is a thyristor, which is designed for many switching applications, especially in Hybrid integrated circuits.

Parametrics

03P4J-T1 absolute maximum ratings: (1)non-repetitive peak reverse voltage: 500 V; (2)non-repetitive peak off-state voltage: 500 V; (3)repetitive peak reverse voltage: 400 V; (4)repetitive peak off-state voltage: 400 V; (5)average on-state current: 0.3 A; (6)RMS on-state current: 0.47 A; (7)surge on-state current: 6 A; (8)fusing current: 0.15 A2s; (9)peak gate power dissipation: 0.1 W; (10)average gate power dissipation: 0.01 W; (11)junction temperature: -55 to +125 ℃; (12)storage temperature: -55 to +150 ℃.

Features

03P4J-T1 features: (1)world standard miniature package: SOT-89; (2)high anode to cathode voltage: VDRM, VRRM=400 V.

Diagrams

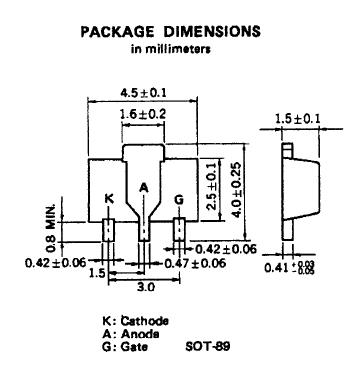

03P4J-T1 package dimension diagram
