Product Summary

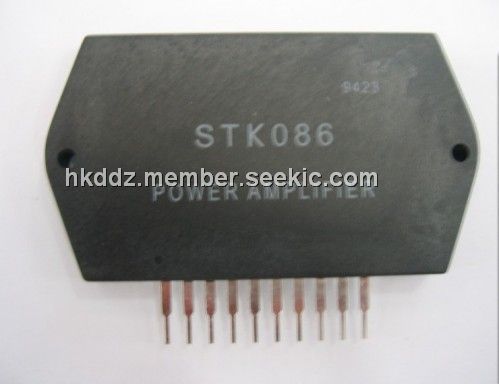

The STK086 is a power amplifier module.

Parametrics

STK086 absolute maximum ratings: (1)Maximum Supply Voltage, Vgg max: ±55V; (2)CollectorC urrent, lc max: 7A; (3)Thermal Coefficient, θj-c: 1.4℃/W; (4)Operating aseT emperature, Tc: 85℃; (5)Storage Temperature, Tsgt: -30 to+100℃.

Features

STK086 features: (1)IMST, 1 Channe by 2 Power Supply; (2)AF Output Power 70 Wmin; (3)Capable of setting protector for load shorting and tone contfoller.

Diagrams

STK086 EQUIVALENT CIRCUIT

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STK086
STK086

Other


Data Sheet

Negotiable
