EL817S(B)

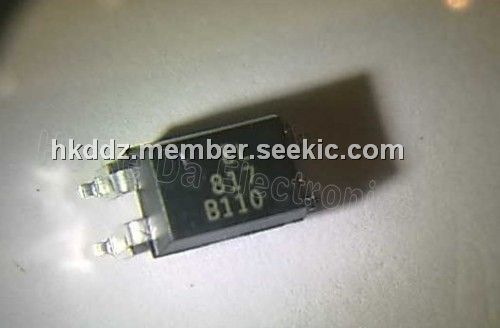

photocoupler, SMD-4, 50mA, 6V, 200mW, High isolation voltage, Pb free, UL approved, Compact dual-in-line package

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.04~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.04~0.05

PartNumber:: EL817S(B)

Brand:: Everlight Electronics Co., Ltd - Everlight | Pack: SMD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Juven You's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-16

From Other Seller

Part Number:EL817S(B)
US $0.04 - 0.05
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The EL817S(B) is a photocoupler. It contains a infrared emitting diode optically coupled to a phototransistor. The EL817S(B) is packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option. The applications of the EL817S(B) include Computer terminals, System appliances, measuring instruments, Registers, copiers, automatic vending machines, Electric home appliances, such as fan heaters, etc, Signal transmission between circuits of different potentials and impedances.

Parametrics

EL817S(B) absolute maximum ratings: (1)Input, Forward Current, IF: 50mA; Reverse Voltage, VR: 6V; Power Dissipation, P: 70mW; (2)Output, Collector Power Dissipation, PC: 150mW; Collector Current, IC: 50mA; Collector-Emitter Voltage, VCEO: 35V; Emitter-Collector Voltage, VECO: 6V; (3)Total Power Dissipation, Ptot: 200mW; (4)Isolation Voltage, Viso: 5000V rms; (5)Operating Temperature, Topr: -55 to +110℃; (6)Storage Temperature, Tstg: -55 to +125℃; (7)Soldering Temperature, Tsol: 260℃.
