Product Summary

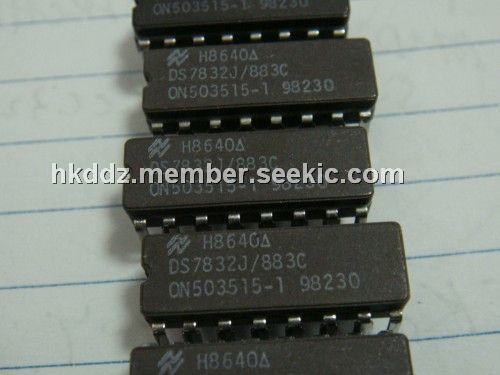

Through simple logic control, the DS7832J/883 can be used as either a quad single-ended line driver or a dual differential line driver. They are specifically designed for party line (bus-organized) systems. The DS7832J/883 does not have the VCC clamp diodes found on the DS7832J/883. The DS7832J/883 is specified for operation over the -55℃ to a125℃ military temperature range. The DS7832J/883 is specified for operation over the 0℃ to 70℃ temperature range.
Parametrics
DS7832J/883 absolute maximum ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 5.5V; (3)Output Voltage: 5.5V; (4)Storage Temperature Range: -65℃ to +150℃; (5)Lead Temperature (Soldering, 4 sec.): 260℃; (6)Maximum Power Dissipation* at 25℃: Cavity Package 1433 mW; Molded Package 1362 mW.
Features
DS7832J/883 features: (1)Series 54/74 compatible; (2)17 ns propagation delay; (3)Very low output impedanceDhigh drive capability; (4)40 mA sink and source currents; (5)Gating control to allow either single-ended or differential operation; (6)High impedance output state which allows many outputs to be connected to a common bus line.
Diagrams
 |
