Product Summary

The V048F480T006 Chip transformer excels at speed, density and efficiency to meet the demands of advanced power applications while providing isolation from input to output. It achieves a response time of less than 1 μs and delivers up to 6.3 A in a volume of less than 0.295 in3 with unprecedented efficiency. It may be paralleled to deliver higher power levels at an output voltage settable from 26.0 to 55.0 Vdc. The V048F480T006 s nominal output voltage is 48 Vdc from a 48 Vdc input Factorized Bus, Vf, and is controllable from 26.0 to 55.0 Vdc at no load, and from 24.7 to 53.8 Vdc at full load, over a Vf input range of 26.0 to 55 Vdc. It can be operated either open- or closed-loop depending on the output regulation needs of the application.

Parametrics

Absolute maximum ratings: (1)+In to -In: -1.0 to 60 Vdc; 100 Vdc For 100 ms; (2)PC to -In: -0.3 to 7.0 Vdc; (3)VC to -In: -0.3 to 19.0 Vdc; (4)+Out to -Out: -0.5 to 60.0 Vdc; (5)Isolation voltage: 2,250 Vdc for Input to output; (6)Output current: 6.3 A for Continuous; (7)Peak output current: 9.4 A For 1 ms; (8)Output power: 336 W for Continuous; (9)Peak output power: 504 W For 1 ms; (10)Case temperature during reflow: 225 ℃ at MSL 5; 245 ℃ at MSL 6, TOB = 4 hrs; (11)Operating junction temperature: -40 to 125 ℃ at T-Grade; -55 to 125 ℃ at M-Grade; (12)Storage temperature: -40 to 125 ℃ at T-Grade; -65 to 125 ℃ at M-Grade.

Features

Features: (1)48 V to 48 V V.I ChipTM Converter; (2)6.3 A (9.4 A for 1 ms); (3)High density -1017 W/in3; (4)Small footprint -260 W/in2; (5)Low weight -0.5 oz (15 g); (6)Pick & Place / SMD or Through hole; (7)125℃ operation (TJ); (8)1μs transient response; (9)3.5 million hours MTBF; (10)Typical efficiency 96%; (11)No output filtering required.

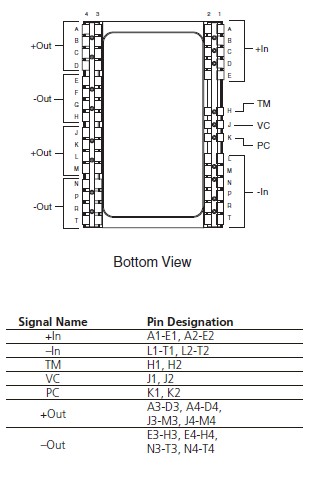

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
V048F480T006
V048F480T006


VTM CURRENT MULTIPLIER 48V 6.25A

Data Sheet

0-1: $44.34
1-10: $41.17
10-25: $40.54
25-50: $39.27
50-100: $36.74
100-250: $33.70
V048F480T006-CB
V048F480T006-CB


VTM CURRENT MULTIPLIER EVAL BOAR

Data Sheet

0-1: $76.03
1-10: $73.66
10-50: $65.34
50-100: $63.20
