Product Summary

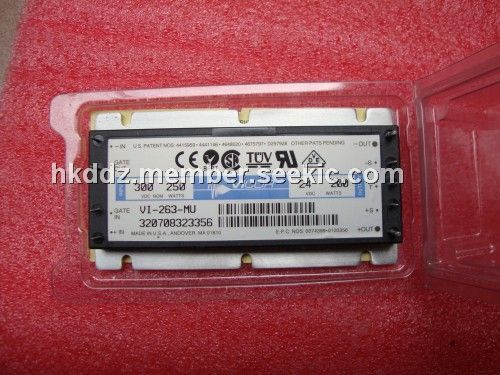

The VI-263-MU with over 12 million units shipped, is a “zero-current-switching” component-level DC-DC converter. Operating at frequencies up to 2 MHz, this device offers exceptional power density, efficiency, noise performance, reliability and ease of use. Booster modules(VI-Bxx) provide a simple, cost-effective, off-the-shelf solution for higher power output requirements.
Parametrics
Output characteristics: (1)Setpoint accuracy: 0.5% typ, 1% VNOM max; (2)Load/line regulation: 0.05% typ, 0.2% VNOM max at LL to HL, 10% to Full Load; (3)Load/line regulation:0.2% typ, 0.5% VNOM max at LL to HL, No Load to 10%; (4)Output temperature drift: 0.01 typ, 0.02 % / °C max Over rated temp; (5)Long term drift:0.02 %/1K hours typ; (6)Output ripple – pp:2 V, 3.3 V: 60mv typ, 100 mV max at 20 MHz bandwidth;5 V: 2% typ, 3% VNOM max at 20 MHz bandwidth;10 – 48 V:0.75% typ, 1.5% VNOM max at 20 MHz bandwidth; (7)Trim range:50% to 110% VNOM; (8)Total remote sense compensation: 0.5 Volts min at 0.25 V max. neg. leg; (9)OVP set point:115% min, 125% typ, 135% VNOM max at Recycle power; (10)Current limit:105% to 125% INOM at Automatic restart; (11)Short circuit current:20% to 130% INOM.
Features
Features: (1)RoHS compliant (VE-200); (2)Up to 50 W/in3; (3)cULus, cTüVus; (4)Up to 90% efficiency; (5)Size: 4.6" x 2.4" x 0.5"(116,8 x 61,0 x 12,7mm); (6)Remote sense and current limit; (7)OVP, thermal shutdown; (8)Logic disable; (9)Wide range output adjust; (10)Compatible power booster modules; (11)ZCS power architecture; (12)Low noise FM control; (13)CE Marked.

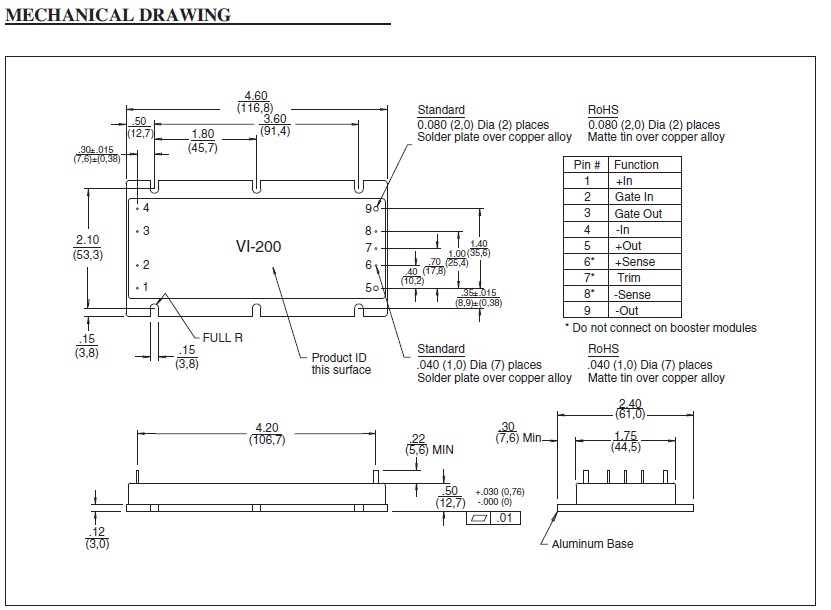

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VI-263-MU |
|
CONVERTER MOD DC/DC 24V 200W |
Data Sheet |
|
|
||||||
|
VI-263-MU-B1 |
|
CONVERTER MOD DC/DC 24V 200W |
Data Sheet |
|
|
||||||
|
VI-263-MU-F1 |
|
CONVERTER MOD DC/DC 24V 200W |
Data Sheet |
|
|
||||||
|
VI-263-MU-F2 |
|
CONVERTER MOD DC/DC 24V 200W |
Data Sheet |
|
|
||||||
|
VI-263-MU-F3 |
|
CONVERTER MOD DC/DC 24V 200W |
Data Sheet |
|
|
||||||
|
VI-263-MU-F4 |
|
CONVERTER MOD DC/DC 24V 200W |
Data Sheet |
|
|
||||||
|
VI-263-MU-S |
|
CONVERTER MOD DC/DC 24V 200W |
Data Sheet |
|
|
||||||
