The 7MBR15SA120 is an IGBT module. The applications of it are Inverter for motor drive, AC and DC servo drive amplifier, Uninterruptible power supply.
Parametrics
7MBR15SA120 absolute maximum ratings: (1)inverter Collector-Emitter voltage:1200V; (2)inverter Gate-Emitter voltage:±20V; (3)inverter Collector power dissipation:110W; (4)brake Collector-Emitter voltage:1200V; (5)brake Gate-Emitter voltage:±20V; (6)brake Collector power dissipation:110W; (7)brake Repetitive peak reverse voltage:1200V; (8)converter Repetitive peak reverse voltage:1600V; (9)converter Average output current:15A; (10)converter surge current:155A; (11)Operating junction temperature:+150℃; (12)Storage temperature:-40℃ to +125℃.
Features
7MBR15SA120 features: (1)Low VCE(sat); (2)Compact package; (3)P.C. board mount; (4)Converter diode bridge, Dynamic brake circuit.

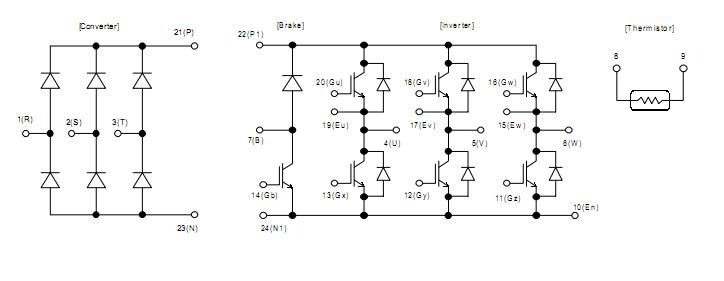

Diagrams
