Product Summary

The MCR716T4G is a reverse blocking thyristor. It is designed for high volume, low cost, industrial and consumer applications such as motor control, process control, temperature, light and speed control.

Parametrics

Absolute maximum ratings: (1)Peak Repetitive Off-State Voltage, VDRM, VRRM: 400V; (2)On-State RMS Current (180° Conduction Angles; TC = 90℃), IT(RMS): 4.0A; (3)Average On-State Current (180° Conduction Angles; TC = 90℃), IT(AV): 2.6A; (4)Peak Non-Repetitive Surge Current, ITSM: 25A; (5)Circuit Fusing Consideration (t = 8.3 msec), I2t: 2.6A2sec; (6)Forward Peak Gate Power, PGM: 0.5W; (7)Forward Average Gate Power, PG(AV): 0.1W; (8)Forward Peak Gate Current, IGM: 0.2A; (9)Operating Junction Temperature Range, TJ: -40 to +110℃; (10)Storage Temperature Range, Tstg: -40 to +150℃.

Features

Features: (1)Small Size; (2)Passivated Die for Reliability and Uniformity; (3)Low Level Triggering and Holding Characteristics; (4)Surface Mount Lead Form Case 369C; (5)Epoxy Meets UL 94 V@0 at 0.125 in; (6)ESD Ratings: Human Body Model, 3B>8000 V Machine Model, C>400 V; (7)Pb-Free Packages are Available.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

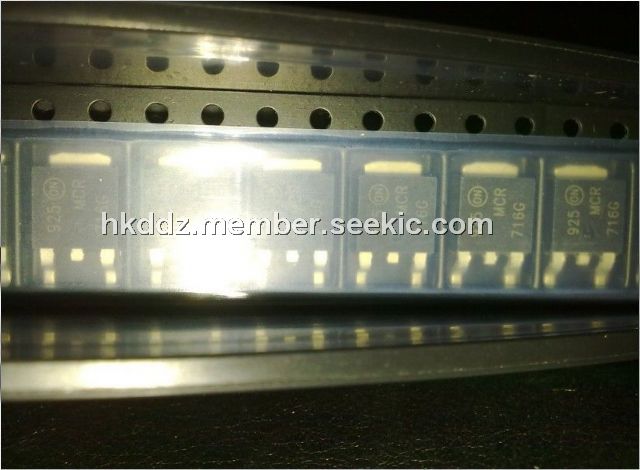

MCR716T4G
MCR716T4G

ON Semiconductor

SCRs 400V 4A

Data Sheet

0-1: $0.55
1-25: $0.43
25-100: $0.37
100-500: $0.27
