Product Summary

The SFH4850 is a High Power Infrared Emitter. Applications include: Sensor technology, Light curtains.

Parametrics

SFH4850 absolute maximum ratings: (1)Betriebs- und Lagertemperatur Operating and storage temperature range Top , Tstg: -40 to +80℃; (2)Sperrspannung Reverse voltage VR: 5V; (3)Vorwartsgleichstrom Forward current IF: 200mA; (4)Stosstrom, tp = 10μs, D = 0, Surge current IFSM: 1A; (5)Verlustleistung Power dissipation Ptot: 470mW; (6)Warmewiderstand Sperrschicht - Umgebung Thermal resistance junction - ambient RthJA: 450K/W; (7)Warmewiderstand Sperrschicht - Gehause Thermal resistance junction - case RthJC: 160K/W.

Features

SFH4850 features: (1)High Power Infrared LED; (2)Anode is electrically connected to the case; (3)Peak wavelength typ. 850 nm; (4)Very high radiance; (5)DIN humidity category in acc. with DIN 40 040 GQG.

Diagrams

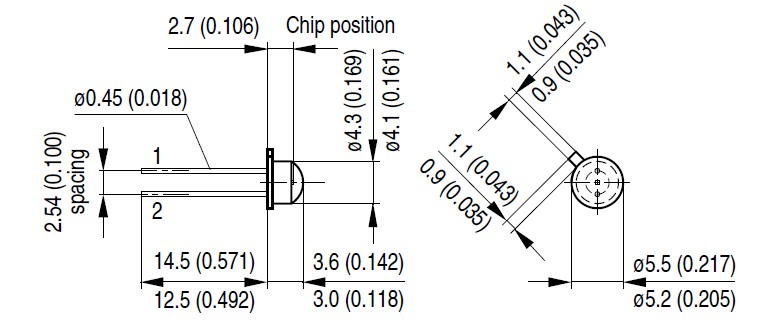

SFH4850 package outlines

SFH400
SFH400

Other


Data Sheet

Negotiable
SFH405
SFH405

Other


Data Sheet

Negotiable

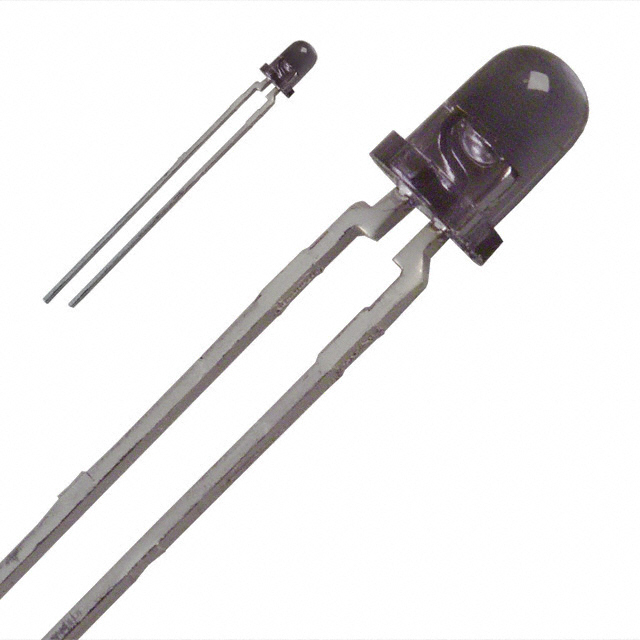

SFH409
SFH409


EMITTER IR 950NM 3MM

Data Sheet

0-1: $0.19
1-10: $0.15
10-100: $0.14
100-250: $0.13
250-500: $0.12
500-1000: $0.12
SFH4110
SFH4110


EMITTER IR 950NM CLR SIDELOOKER

Data Sheet

0-1: $0.23
1-10: $0.19
10-100: $0.17
100-250: $0.16
250-500: $0.16
500-1000: $0.15

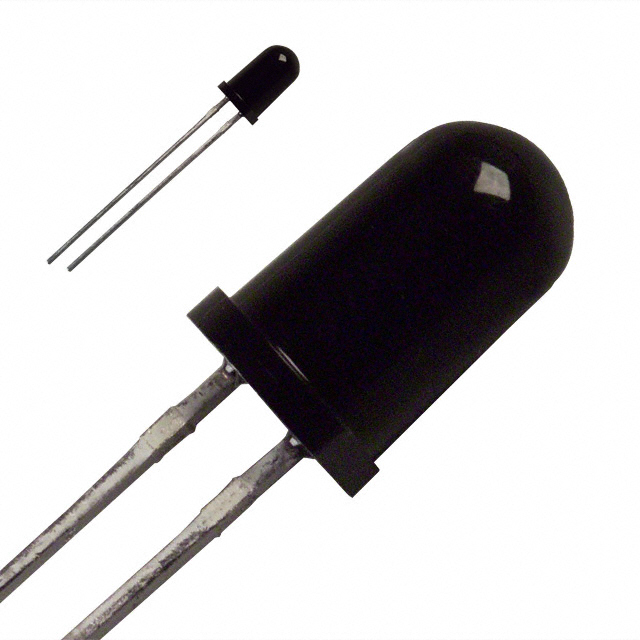

SFH415
SFH415


EMITTER IR 950NM 5MM

Data Sheet

Negotiable

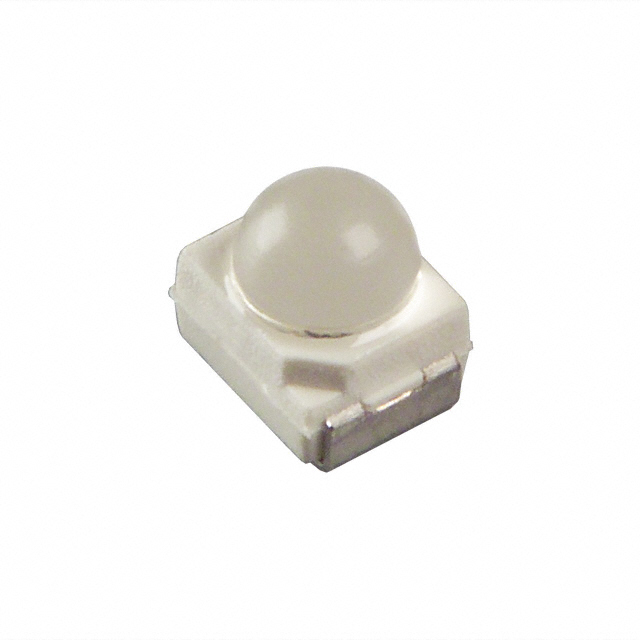

SFH420
