Product Summary

The G5LA-14 12VDC is a Cubic, Single-pole 10A Power Relay.

Parametrics

G5LA-14 12VDC absolute maximum ratings: ((1)Rated load (resistive): SPST-NO 10 A @ 250 VAC (NO), 10 A @ 24 VDC (NO); (2)Rated carry current: 10 A (SPST-NO), 10 A (High-capacity), 5 A (SPDT); (3)Max. switching voltage: 250 VAC 24 VDC; (4)Max. switching current: 10 A SPST-NO, 5 A SPDT, High-capacity; (5)Max. switching capacity: 2500 VA, 240 W (NO), 625 VA, 120 W (NC), 1250 VA, 120 W (NO/NC High-capacity); (6)Min. permissible load: 100 mA at DC5V; (7)Contact Material: AgSnO2.

Features

G5LA-14 12VDC features: (1)Economical cube relay with universal terminal footprint; (2)Conforms to VDE0435, CQC; (3)UL recognized/ CSA certified.; (4)High switching power: 10A @ 250VAC; (5)Withstands impulse of up to 4,500V; (6)Coil power consumption: 360mW; (7)UL Class F coil insulation type also available; (8)Tracking resistance: CTI>250; (9)RoHS Compliant.

Diagrams

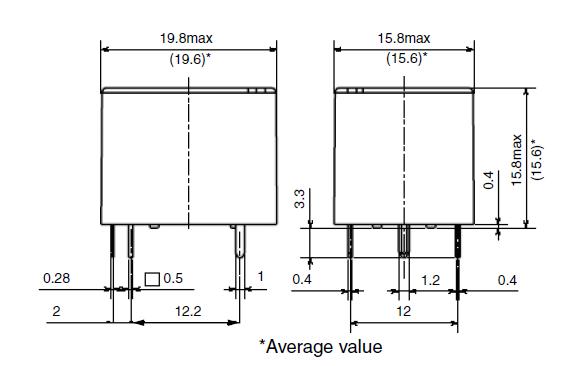

G5LA-14 12VDC diagram

G5LA-1 DC12
G5LA-1 DC12


RELAY GEN PURPOSE SPDT 5A 12V

Data Sheet

0-1: $0.82
1-25: $0.73
25-50: $0.65
50-100: $0.59
100-250: $0.55
250-500: $0.49
500-1000: $0.44
G5LA-1 DC24
G5LA-1 DC24


RELAY GEN PURPOSE SPDT 5A 24V

Data Sheet

0-100: $0.76
G5LA-1 DC48
G5LA-1 DC48

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay

Data Sheet

0-1: $0.82
1-25: $0.77
25-50: $0.76
50-100: $0.72
G5LA-1 DC5
G5LA-1 DC5


RELAY GENERAL PURPOSE SPDT 5A 5V

Data Sheet

0-100: $0.73
G5LA-1 DC9
G5LA-1 DC9

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay

Data Sheet

0-1: $0.72
1-25: $0.67
25-50: $0.65
50-100: $0.62
G5LA-14 DC12
G5LA-14 DC12


RELAY GEN PURPOSE SPDT 5A 12V

Data Sheet

0-1: $0.85
1-25: $0.76
25-50: $0.67
50-100: $0.61
100-250: $0.57
250-500: $0.51
500-1000: $0.46
