Product Summary

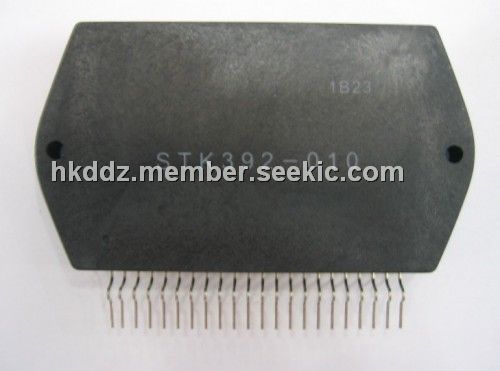

The STK392-010 is a convergence correction circuit IC for video projectors. It incorporates three output amplifiers in a single package, making possible the construction of CRT horizontal and vertical convergence correction output circuits for each of the RGB colors using just two hybrid ICs. The application of the STK392-010 is general video projectors.
Parametrics
STK392-010 absolute maximum ratings: (1)maximum supply voltage:±38V; (2)maximum collector current:5.0A; (3)thermal resistance:2.6℃/W; (4)junction temperature:150℃; (5)operating substrate temperature:125℃; (6)storage temperature:-30℃ to +125℃.
Features
STK392-010 features: (1)3 output amplifier circuits in a single package(22-pin); (2)high absolute maximum supply voltage(VCC max=±38V); (3)low thermal resistance(θJ-C=2.6℃/W); (4)high temperature stability(Tj max=125℃); (5)separate predriver and output stage supplies; (6)output stage supply switching for high-performance designs; (7)pins are arranged in separate groups of inputs, supply, outputs to reduce the adverse effects of pattern layout on characteristics and to make design easier; (8)constant-current circuit in the predriver for stable supply switching operation; (9)large lineup of family devices to cover the range from general applications to high-class applications using a single PCB.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 STK392-010 |
Other |
|
Data Sheet |
Negotiable |
|
||||
