Product Summary
The STK4048XI is an AF power amplifier.
Parametrics
Absolute maximum ratings: (1)maximum supply voltage: ±87 V; (2)thermal resistance: 1.2℃/W; (3)junction temperature: 150℃; (4)operating substrate temperature: 125℃; (5)storage temperature: -30 to +125℃.
Features
Features: (1)the use of a current mirror circuit, cascode circuit, pure complementary circuit provides low distortion (THD=0.008%/100kHz LPF ON); (2)possible to design electronic supplementary circuits (pop noise muting at the time of power ON/OFF, load short protector, thermal shutdown).

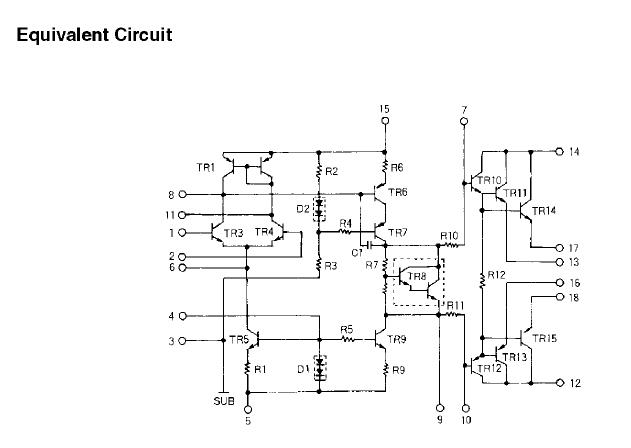

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 STK4048XI |
Other |
|
Data Sheet |
Negotiable |
|
||||
