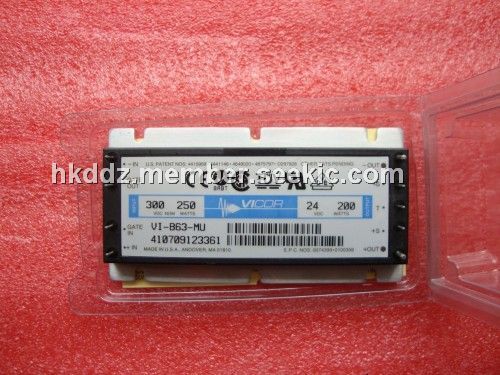

Product Summary
The VI-B63-MU is a battery charger current source module, which combines Vicors industry standard package with the flexibility of a power converter whose output voltage and output current may be independently set. It is available in booster versions that enable the designer to create systems capable of multiple kilowatts of output power.With its wide range of input options, this device is compatible with all major battery types.
Parametrics
Batmod specifications(typical tbp = 25°c, nominal line, 75% load, unless otherwise specified): (1)Nominal Input Voltage: 48Vdc, 150Vdc at 42-60V, 100-200V; 300Vdc at 200-400V; (2)Output Curren(Refer to Safe Operating Curves below): 0-14.5A at 12V battery system; 0-7.25A at 24V battery system; 0-3.6A at 48V battery system; (3)Current Control Input: 1V to 5V at Zero to max. current; (4)Current Monitor Output: 1V to 5V at Zero to full load; (5)Voltage Control Input: 0V to 2.5V at Zero to FS output; (6)Output Voltage Setpoint Trimmable +10%, -25%: 15V, 30V, 60V +/-1% at 12V, 24V, 48V Output Respectively; (7)Dynamic Characteristics: V Mode: 300 μsec typ. at VNOM for 50-100%;I Mode: 250 μsec typ. at load changes.
Features
Features:(1)Programmable Output Current; (2)Booster Versions Available; (3)Size: 4.6" x 2.4" x 0.5"(116,8 x 61,0 x 12,7); (4)UL, CSA, TüV; (5)Compatible with All Major Battery Types; (6)Inputs: 48, 150, 300Vdc; (7)Outputs: 12, 24, 48Vdc Nom.; (8)Analog Current Monitor; (9)Analog Overvoltage Adjust; (10)CE Marked.

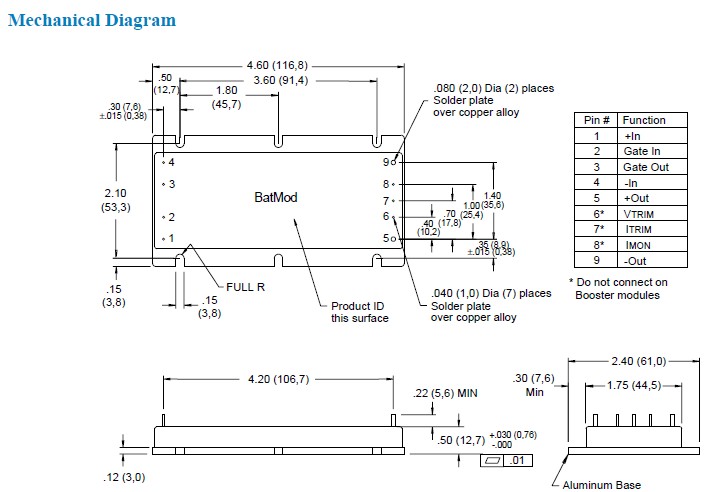

Diagrams
