Product Summary

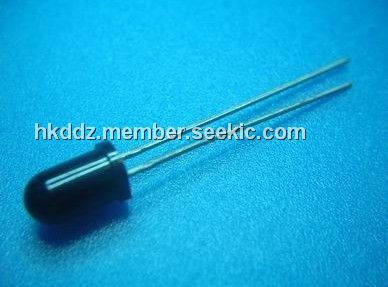

The SFH203PFA is a silicon PIN photodiode with very short switching time. This is a lead (Pb) free and RoHS compliant product. It has a wide application in industrial electronics, for control and drive circuits, photo interrupters, fiber optic transmission systems.

Parametrics

Absolute maximum ratings: (1)Operating and storage temperature range, Top,Tstg: –55 to +100℃; (2)Dip soldering temperature, ≧ 2 mm distance from case bottom, soldering time,t≦ 5 s, TS: 300℃; (3)Reverse voltage, VR: 50V; (4)Total power dissipation, Ptot: 100mW.

Features

Features: (1)Especially suitable for applications from 400 nm to 1100 nm (SFH 203 P) and of 880 nm (SFH 203 PFA); (2)Short switching time (typ. 5 ns); (3)5 mm LED plastic package.

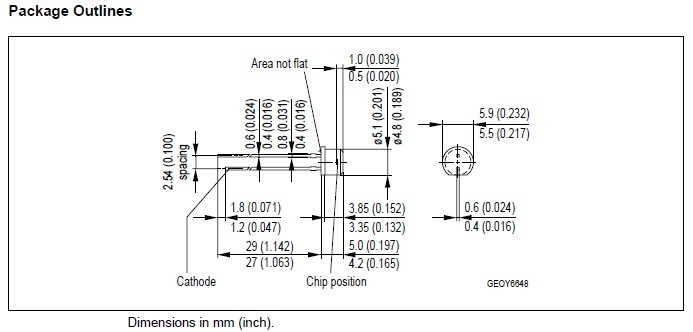

Diagrams
