Product Summary

The G5V-2 12VDC is a Miniature Relay for Signal Circuits.

Parametrics

G5V-2 12VDC absolute maximum ratings: (1)Load: Resistive load (p.f. = 1); (2)Rated load: 0.50 A at 125 VAC; (3)Contact material: Ag (Au clad); (4)Carry current: 2 A; (5)Max. operating voltage: 125 VAC; (6)Max. operating current: 1 A; (7)Max. switching capacity: 62.5 VA, 60W; (8)Min. permissible load: 10 μA, 10 mVDC.

Features

G5V-2 12VDC features: (1)Suitable for handling low signals in computer peripherals, telecommunications and security equipment; (2)Capable of switching loads 10 μA to 2 A; (3)Conforms to FCC part 68 1,500 V surge withstand; (4)Reliable Ag + Au-clad, bifurcated crossbar contacts; (5)Fully-sealed construction; (6)RoHS Compliant.

Diagrams

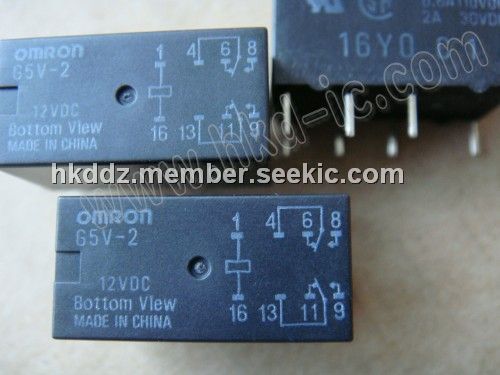

G5V-2 12VDC diagram
