DS2108S

Differential SCSI, Switchable Terminator, SOP, 6 pF, -7.0V to +12.0V, Switchable power-down mode

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.95~1.18 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.95~1.18

PartNumber:: DS2108S

Brand:: Dallas Semiconductor - Maxim | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Juven You's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-16

From Other Seller

Part Number:DS2108S
US $0.95 - 1.18
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

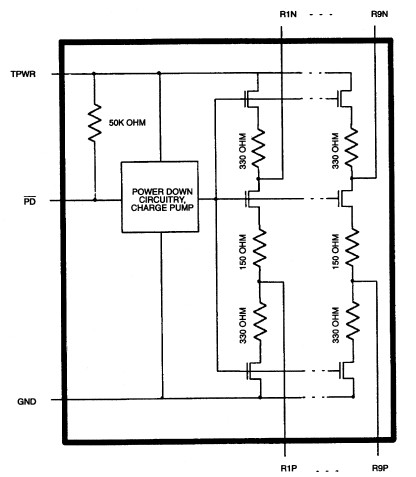

The DS2108S SCSI Terminator has been specifically designed for High Voltage Differential (HVD) SCSI systems requiring switchable termination. The DS2108S integrates eighteen 330-ohm and nine 150-ohm precise switched termination resistors into a monolithic IC. The surface mount SOIC package saves board space over conventional resistor SIPs. The termination resistors can be isolated from the SCSI bus under software or hardware control. While in the powered down mode, the DS2108S isolates the nine terminator blocks from the bus while adding only 6 pF capacitance to each signal line of the SCSI bus.

Parametrics

DS2108S absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -7.0V to +12.0V; (2)Operating Temperature: 0℃ to 70℃; (3)Storage Temperature: -55℃ to +125℃; (4)Soldering Temperature: 260℃ for 10 seconds.
