Product Summary

The SFH4860 is a GaAlAs Light Emitting Diode. Applications include: Photointerrupters, Hermetically sealed package.

Parametrics

SFH4860 absolute maximum ratings: (1)Betriebs- und Lagertemperatur Operating and storage temperature range Top, Tstg: -55 to +125℃; (2)Sperrschichttemperatur Junction temperature Tj: 125℃; (3)Sperrspannung Reverse voltage VR: 3V; (4)Durchlaβtrom Forward current IF: 50 mA; (5)Stoβtrom, tp = 10 μs, D = 0 Surge current IFSM: 1 A; (6)Verlustleistung Power dissipation Ptot: 140 mW; (7)Wamewiderstand RthJA: 450K/W; (5)Thermal resistance RthJC: 160K/W.

Features

SFH4860 features: (1)Radiation without IR in the visible red range; (2)Cathode is electrically connected to the case; (3)Very high efficiency; (4)High reliability; (5)Short switching time.

Diagrams

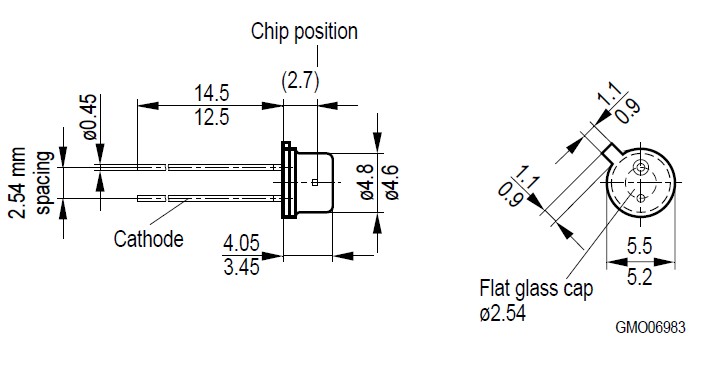

SFH4860 package outlines
