Product Summary

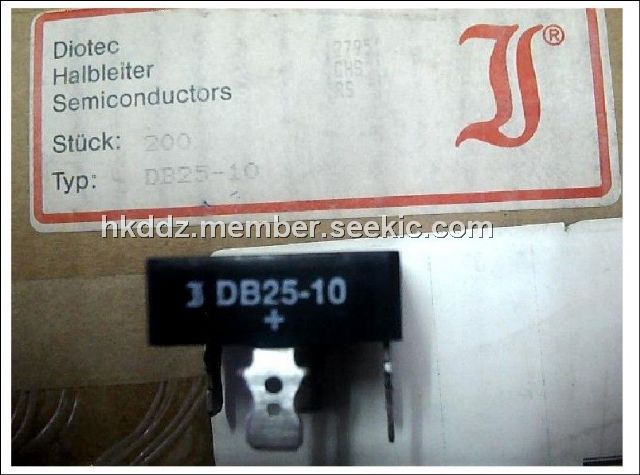

The DB25-10 is a three-phase si-bridge rectifier with a wide range, good quality, reasonable prices and stylish designs. It is extensively used in Program-controlled switch, communications equipment decoder, tax-controlled machines, CNC equipment and industrial control device communications, ship, instrument and meter such as aerospace, military equipment, communication network, medical equipment, and so on. Its nominal current is 25A.

Parametrics

Maximum ratings: (1)max. alternating input voltage max, VVRMS [V]:700; (2)Repetitive peak reverse voltage, VRRM:1000; (3)Repetitive peak forward current at f > 15 Hz: IFRM=100 A 2; (4)Peak forward surge current, 50 Hz half sine-wave at TA = 25℃: IFSM=350 A; (5)Rating for fusing, t <10 ms at TA = 25℃: i2t =600 A2s; (6)Operating junction temperature, Tj :- 50+150℃; (7)Storage temperature, TS:- 50+150℃.

Features

Features: (1)Nominal current: 25 A; (2)Repetitive peak reverse voltage: 50 to 1600 V; (3)Dimensions: 28.5 x 28.5 x 10 [mm]; (4)Weight approx:21 g; (5)Standard packaging: bulk see page 22.

Diagrams
