Product Summary

The VLT80-4001 is a 80W single and quad output AC/DC Power Supply. All popular DC voltages of VLT80-4001 are offered from 3.3v to 48v with full universal 90v to 264v input and power conversion ratings > 85%. Class A harmonic current correction of the VLT80-4001 is featured as is a full 80 watts power with convection cooling. Ideal for data networking, industrial and multimedia applications.

Parametrics

VLT80-4001 absolute maximum ratings: (1)AC Input Universal: 90 to 264Vac; (2)Efficiency: 85% Typical; (3)Input Frequency: 47-63 Hz; (4)Input Current: 2.2Arms , max; (5)Inrush Current: 35A,max; (6)Hold-Up Time: 115V 10ms; (7)Voltage Set Point Accuracy: +3%; (8)Line Regulation Low line to high line: ±0.3%; (9)Load Regulation Min to 50% & 50% to Max load: +1%.

Features

VLT80-4001 features: (1)80 W convection cooled rating; (2)Small 5.0x3.04x1.073 inch form factor; (3)High efficiency > 85%; (4)Class A harmonic current correction; (5)EN55022-B, FCC Part 15 Level B; (6)Cover Kit accessory available.

Diagrams

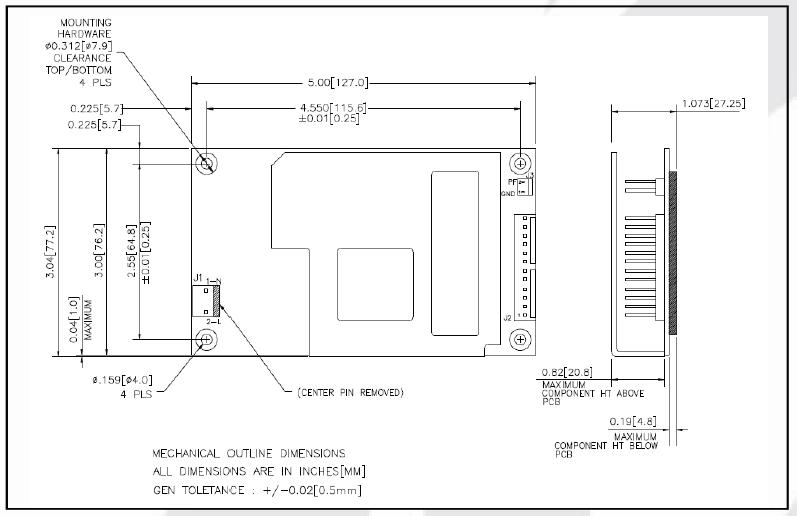

VLT80-4001 diagram
