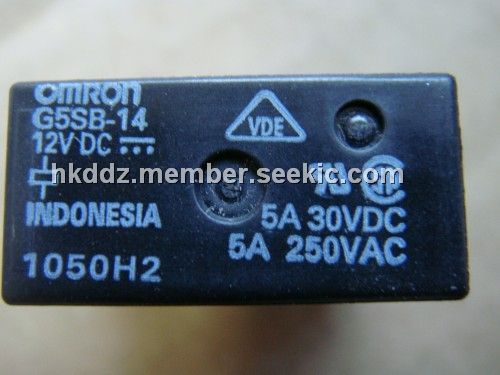

Product Summary

The G5SB-14 12VDC is a Compact Single-pole Relay for Switching Up to 5 A (Normally Open Contact), Ideal for Fan Control of Air Conditioners, and Heating Control of Small Appliances.

Parametrics

G5SB-14 12VDC absolute maximum ratings: (1)Rated voltage 5 VDC; (2)Rated current 80 mA; (3)Coil resistance 63 Ω; (4)Must operate voltage 75% max. of rated voltage; (5)Must release voltage 5% min. of rated voltage; (6)Maximum voltage 150% of rated voltage at 23℃; (7)Power consumption Approx. 400 mW.

Features

G5SB-14 12VDC features: (1)Environment-friendly, Pb-free/Cd-free.; (2)Compact SPDT Relay with high insulation between coil and contacts.; (3)Ensures an impulse withstand voltage of 8,000 V between; (4)the coil and contacts.; (5)UL recognized, CSA certified and VDE (EN) approved. ; (6)RoHS Compliant.

Diagrams

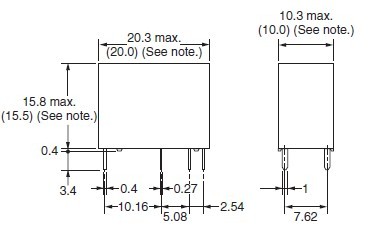

G5SB-14 12VDC Dimensions

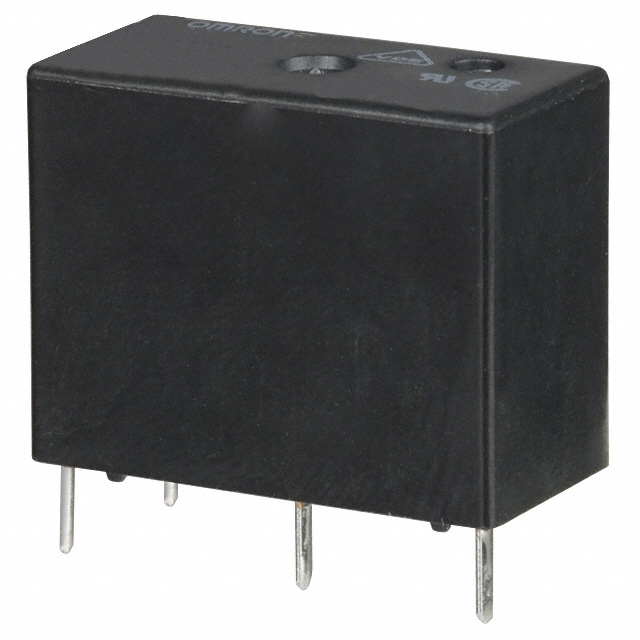

G5SB-1 DC24
G5SB-1 DC24
Omron Electronics
General Purpose / Industrial Relays SPDT 5A 16.7mA 24VDC
Data Sheet
