Product Summary
General output stage of power amplifier STK0029 has a difficult and complex problem about heat sink designing and STK0029’s setting. Sanyo’s D.P.P. in tneds to decrease electronic parts and rationalize a manufacturing process by designing IC of only output stage of power amplifier.
Parametrics
STK0029 absolute maximum ratings: (1)maximum supply voltage, Vcc max: ±37V; (2)junction temperature, Tj: 150℃; (3)storage temperature, Tstg: -30 to 105℃.
Features
STK0029 features: (1)IMST system; (2)Output stage for AF high power amplifier; (3)Dual power supply; (4)Darlington type pure/quasi-complementary circuit; (5)These same pin assignment and pin interval lead to standardize a printad board; (6)Metal substrate use IMST makes good thermal stability; (7)Able to design freely previous section of power amplifier; (8)This leads tone control designing.

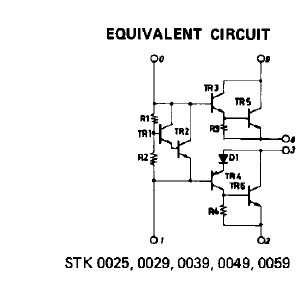

Diagrams
 |
