Product Summary

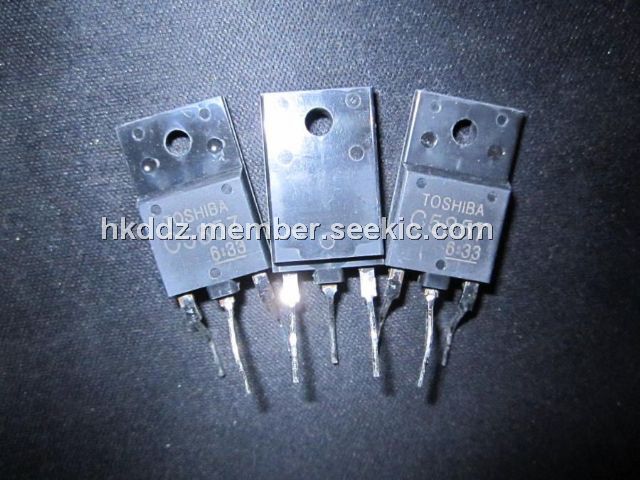

The 2SC5857 is a transistor. It is suitable for horizontal deflection output for HDTV, digital TV, projection TV.
Parametrics
2SC5857 absolute maximum ratings: (1)Collector-Base Voltage VCBO: 1700 V; (2)Collector-Emitter Voltage VCEO: 750 V; (3)Emitter-Base Voltage VEBO: 5 V; (4)Base Current IB: 10.5 A; (5)Collector Power Dissipation PC: 75 W; (6)Junction Temperature Tj: 150℃; (7)Storage Temperature Range Tstg: -55~150℃.
Features
2SC5857 features: (1)High Voltage: VCBO = 1700 V; (2)Low Saturation Voltage: VCE (sat) = 1.5 V (max); (3)High Speed: tf(2) = 0.1 μs (typ.).
Diagrams
 |
