Product Summary
The 9001-12-00 SIP relay is the industry standard when high reliability and consistent performance are desired in a compact package. The 9001-12-00 is a high performance relay ideally suited for Automatic Test Equipment, Instrumentation, RF and Telecommunications applications. The specification tables allow you to select the appropriate relay for your application.
Parametrics
9001-12-00 general specifications: (1)Switching Voltage:200V; (2)Switching Current:0.5A; (3)Carry Current:1.5A; (4)Contact Rating:10W.
Features
9001-12-00 features: (1)High Insulation Resistance - 1012Ω minimum (1013Ω typical); (2)High reliability, hermetically sealed contacts for long life (tested up to 1 Billion Operations); (3)High dielectric strength available, consult factory; (4)High speed switching compared to electromechanical relays; (5)Molded thermoset body on integral lead frame design; (6)Coaxial Shield for 50Ω impedance and switching of fast rise time digital pulses - 9002 only; (7)Optional Coil Suppression Diode - protects coil drive circuits; (8)UL File #E67117, CSA File #028537 - Contact factory for details; (9)RoHS compliant.

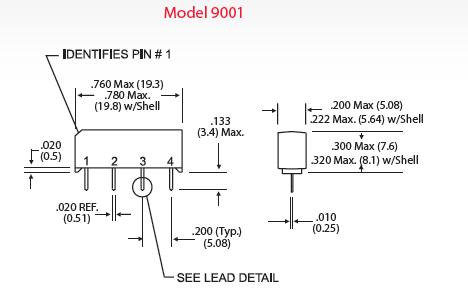

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 9001-12-00 |
Coto Technology |
Reed Relay SIP Reed Relay |
Data Sheet |
|
|
||||||||||||
