Product Summary

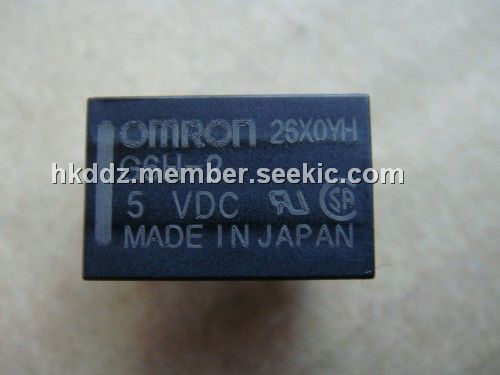

The G6S-2 DC5V is a Low Signal Relay.

Parametrics

G6S-2 DC5V absolute maximum ratings: (1)Rated load: 0.5 A at 125 VAC, 2 A at 30 VAC; (2)Contact material: Ag (Au clad); (3)Max. carry current: 2 A; (4)Max. operating voltage: 250 VAC, 220 VDC; (5)Max. operating current: 2 A; (6)Max. switching capacity: 62.5 VA, 60 W; (7)Min. permissible load: 10 mVDC, 10 mA.

Features

G6S-2 DC5V features: (1)Third generation surface mount design; (2)Design is based on worldwide telecommunications, data communications, computer peripheral and office automation relay requirements; (3)High dielectric withstand voltage of 2,000 VAC between coil and contacts (standard type); (4)Meets 2.5kV Bellcore surge requirement; (5)Offers significant board space savings; (6)European version certified for EN60950/EN41003 Supplementary Insulation at 250 V; (7)Available in PCB through-hole terminal configuration; (8)Tape and reel packaging option available.

Diagrams

G6S-2 DC5V Internal connections diagram

G6S-2 DC48
G6S-2 DC48
Omron Electronics
Low Signal Relays - PCB ThruHole NonLatch 2A DPDT 48VDC 300mW
Data Sheet
0-1: $2.86
1-25: $2.57
25-50: $2.39
50-100: $2.28
G6S-2 DC5
G6S-2 DC5
Omron Electronics
Low Signal Relays - PCB ThruHole NonLatch 2A DPDT 5VDC 140mW
Data Sheet
0-1: $1.65
1-25: $1.48
25-50: $1.31
50-100: $1.18
G6S-2-DC12
G6S-2-DC12
Omron Electronics
Low Signal Relays - PCB ThruHole NonLatch 2A DPDT 12VDC 200mW
Data Sheet
0-1: $1.88
1-25: $1.65
25-50: $1.57
50-100: $1.48
G6S-2-DC24
G6S-2-DC24
Omron Electronics
Low Signal Relays - PCB ThruHole NonLatch 2A DPDT 24VDC 140mW
Data Sheet
0-1: $1.83
1-25: $1.72
25-50: $1.66
50-100: $1.60
G6S-2F-10-TR DC24
G6S-2F-10-TR DC24
Omron Electronics
Low Signal Relays - PCB LOW SIGNAL RELAY
Data Sheet
0-1: $2.36
1-25: $2.24
25-50: $2.05
50-100: $1.87
G6S-2-10 DC24
G6S-2-10 DC24
Omron Electronics
Low Signal Relays - PCB LOW SIGNAL RELAY
Data Sheet
0-1: $2.22
1-25: $2.11
25-50: $1.93
50-100: $1.77
