Product Summary

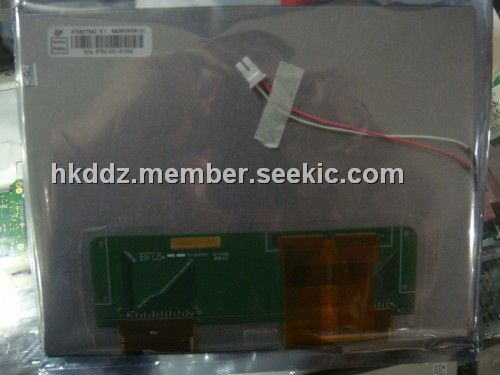

The AT080TN42 is a innolux display corporation LCD module.

Parametrics

AT080TN42 absolute maximum ratings: (1)VCC: -0.3 5.0 V; (2)AVDD: -0.5 13.5 V; (3)VGH: 13.0 19.0 V; (4)VGL: -12.0 -2.0 V; (5)VGH-VGL: 31.0 V; (6)Operation Temperature TOP: -30 85 ℃; (7)Storage Temperature TST: -40 95 ℃; (8)LED Reverse Voltage VR: 1.2 V; (9)LED Forward Current IF: 25 mA.

Features

AT080TN42 features: (1)LCD size 8.0 inch(Diagonal); (2)Driver element a-Si TFT active matrix; (3)Resolution 800X3(RGB)X600; (4)Display mode Normally White, Transmissive; (5)Dot pitch 0.0675(W)X0.2025(H) mm; (6)Active area 162(W)X121.5(H) mm; (7)Module size 183(W)X141(H)X6.3(D) mm; (8)Surface treatment Anti-Glare; (9)Color arrangement RGB-stripe.

Diagrams

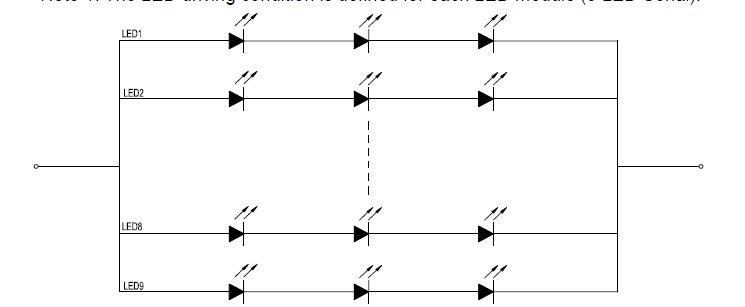

AT080TN42 functional diargam
