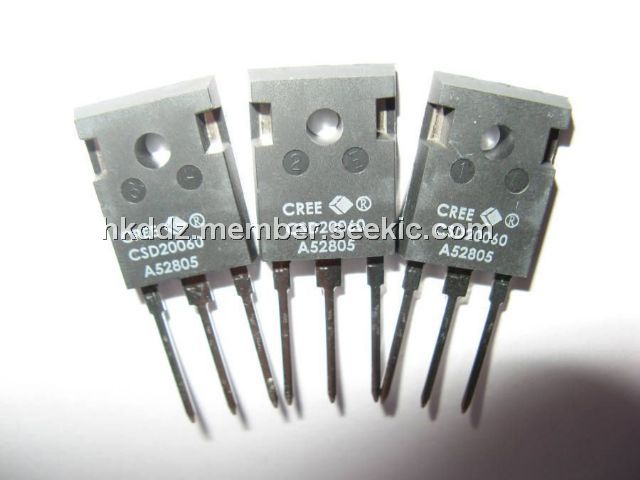

CSD20060

CSD20060, zero recovery rectifier, TO-3P, 600V, 20A, Cree, Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.80~3.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.80~3.20

PartNumber:: CSD20060

Brand:: Cree, Inc - Cree | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Juven You's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-08

From Other Seller

Part Number:CSD20060
US $2.80 - 3.20
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CSD20060 is a zero recovery rectifier. The applications of the CSD20060 include Switch Mode Power Supplies, power Factor Correction, Motor Control, Snubber.

Parametrics

CSD20060 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage, VRRM: 600 V; (2)Surge Peak Reverse Voltage, VRSM: 600 V; (3)DC Blocking Voltage, VDC: 600 V; (4)Average Forward Current, (Per Device), IF(AV): 20A; TC=150℃ (Per Leg), IF(AV): 10A; (5)Repetitive Peak Forward Surge Current (Per Leg). TC=25℃, tP=8.3ms, Half Sine Wave, IFRM: 50 A; (6)Non-Repetitive Peak Forward Surge Current (Per Leg), TC=25℃, tP=10ms, Pulse, IFSM: 250 A; (7)Power Dissipation (Per Leg), TC = 25℃, Ptot: 138 W; (8)Operating Junction and Storage Temperature, TJ , Tstg: -55 to +175℃.

Features

CSD20060 features: (1)600 Volt Schottky Rectifier; (2)Zero Reverse Recovery; (3)Zero Forward Recovery; (4)High Frequency Operation; (5)Temperature Independent Switching Behavior; (6)Extremely Fast Switching; (7)Positive Temperature Coefficient on V.
