Product Summary

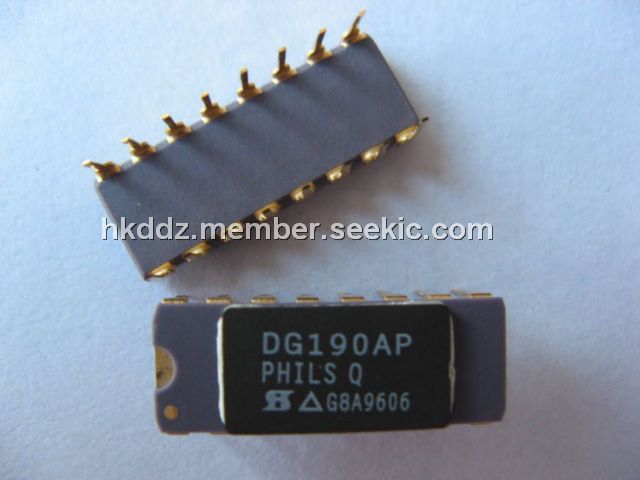

The DG190AP is a High-Speed Driver with JFET Switch. The DG190AP series of analog gates consist of 2 or 4 N-channel junction-type field-effect transistors (JFET) designed to function as electronic switches. Level-shifting drivers enable low-level inputs (0.8V to 2V) to control the ON-OFF state of each switch. The DG190AP is designed to provide a turn-off speed which is faster than turn-on speed, so that break-before-make action is achieved when switching from one channel to another. In the ON state, each switch conducts current equally well in both directions. In the OFF condition, the switches will block voltages up to 20V peak-to-peak.
Parametrics
DG190AP absolute maximum ratings: (1)V+ - V-: 36V; (2)V+ - VD: 33V; (3)VD - V-: 33V; (4)VD - VS: ±22V; (5)VL - V-: 36V; (6)VL - VIN, VL - GND, VIN - GND: 8V; (7)GND - V-: 27V; (8)GND - VIN: 20V; (9)Current (S or D): 200mA; (10)Storage Temperature: -65℃ to +150℃; (11)Lead Temperature (Soldering, 10s): +300℃.
Features
DG190AP features: (1)Constant ON-Resistance for Signals to ±10V (DG182, DG185, DG188, DG191), to ±7.5V (All Devices); (2)±15V Power Supplies; (3)<2nA Leakage from Signal Channel in Both ON and OFF States; (4)TTL, DTL, RTL Direct Drive Compatibility; (5)tON, tOFF <150ns, Break-Before-Make Action; (6)Cross-Talk and Open Switch Isolation >50dB at 10MHz (75W Load).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DG190AP |
Vishay Semiconductors |
Analog Switch ICs SPDT Analog Switch |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
DG190 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
DG190AP |
Vishay Semiconductors |
Analog Switch ICs SPDT Analog Switch |
Data Sheet |
Negotiable |
|
||||
|
DG191 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
DG191AP |
Vishay Semiconductors |
Analog Switch ICs SPDT Analog Switch |
Data Sheet |
Negotiable |
|
||||
