Product Summary

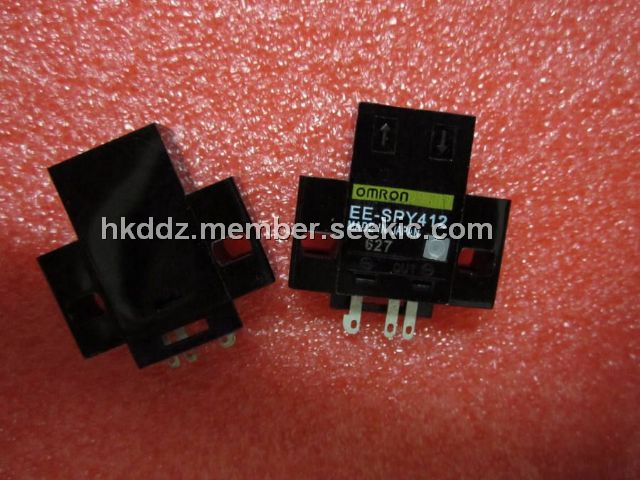

The EE-SPY412 is a Light Convergent Reflective Photomicrosensor.

Parametrics

EE-SPY412 absolute maximum ratings: (1)Operating: -10 to +55℃; (2)Storage: -25 to +65℃; (3)Supply voltage 5 to 24 VDC ±10%, ripple (p-p): 5% max; (4)Current consumption Average: 15 mA max., Peak: 50 mA max; (5)Response frequency: 100 Hz min.

Features

EE-SPY412 features: (1)A shiny background can be used as long as the distance between the sensor and the background is 20 mm or more; (2)Detects minute objects such as a 0.05-mm-dia. pure copper wire; (3)Small dispersion in sensing distance; (4)Light modulation effectively reduces external light interference; (5)Wide operating voltage range: 5 to 24 VDC.

Diagrams

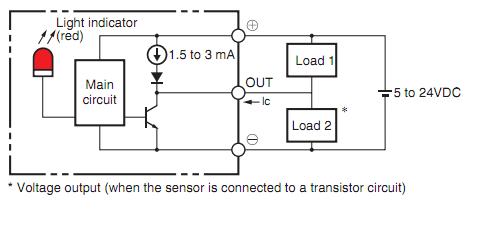

EE-SPY412 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EE-SPY412
EE-SPY412
Omron Industrial
Optical Switches, Reflective, with Phototransistor Output Light-on 5mm Top-detecting
Data Sheet
0-1: $25.78
1-2: $25.45
2-5: $24.43
5-10: $23.80
