Product Summary

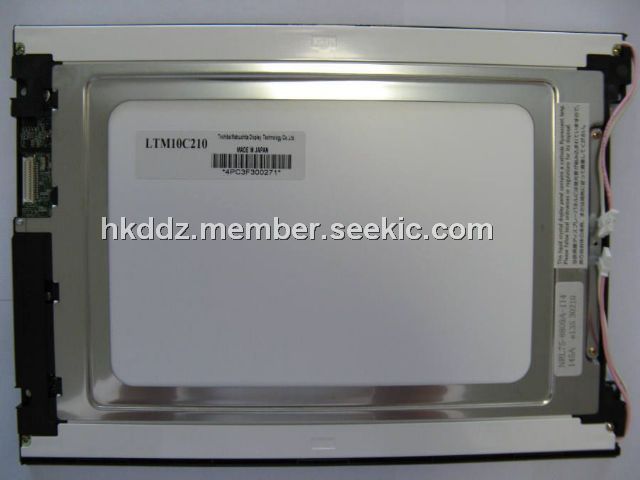

The LTM10C210 is a 26cm colour TFT-LCD module.

Parametrics

LTM10C210 absolute maximum ratings: (1)Supply Voltage (VDD): -0.3 to 7.0 V; (VFL): 0 to 2.0 kV(rms); (2)FL Driving Frequency (fFL): 100 kHz; (3)Input Signal Voltage (VIN): -0.3 to VDD+0.3 V; (4)Operating Temperature: 0 to 50℃; (5)Storage Temperature: -20 to 60℃; (6)Storage Humidity (Max. wet bulb temperature = 39℃): 10 to 90 %(RH).

Features

LTM10C210 features: (1)10.4” VGA color display with High Luminance (400cd/m2); (2)Wide Viewing Angle (Vertical:90, Horizontal: 110); (3)Built in Long Life Lamps(50,000 h); (4)Full mechanical compatible with LTM10C209A, LTM10C209H(10.4" VGA), LTM10C273 (10.4” SVGA).

Diagrams

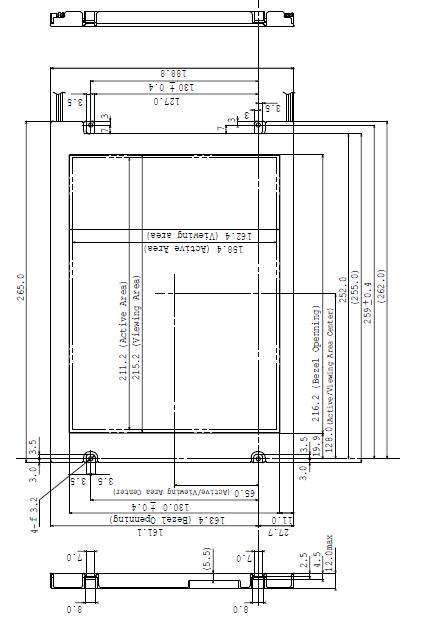

LTM10C210 block diagram
