Product Summary

The PA09M/883 is a high voltage, high output curretn operational amplifier optimized to drive a variety of loads from DC through the video frequency range. Excellent input accuracy is achieved with a dual monolithic FET input ransistor which is cascoded by two high voltage transistors to provide outstanding common mode characteristics. All internal current and voltage levels are referenced to a zener diode biased on by a current souce. As a result, the PA09M/883 exhibits superior DC and AC stability over a wide supply and temperature range.

Parametrics

PA09M/883 absolute maximum ratings: (1)supply voltage, +VS to -VS: 80V; (2)output current, within SOA: 5A; (3)power dissipation, internal: 78W; (4)input voltage, differnetial: 40W; (5)input voltage, common mode: ±VS; (6)temperature, pin solder, 10s: 300℃; (7)temperature, junction: 150℃; (8)temperature range, storage: -65 to 150℃; (9)operating temperature range, case: -55 to 125℃.

Features

PA09M/883 features: (1)power MOS technology-2A peak rating; (2)high gain bandwidth product: 150MHz; (3)very fast slew rate: 400V/μs; (4)protected output stage: thermal shutoff; (5)excellent linearity: closs A/B output; (6)wide supply range: ±12V to ±40V; (7)low bias current, low noise: FET input.

Diagrams

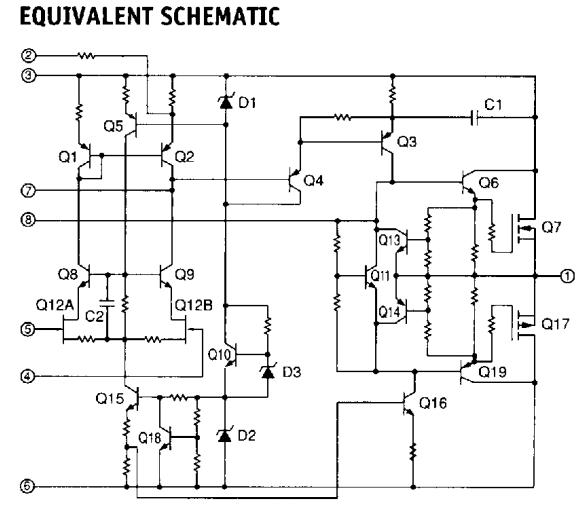

PA09M/883 equivalent circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PA09M/883
PA09M/883
Cirrus Logic
Operational Amplifiers - Op Amps Linear Op-AMp 80V 5A DCSS Compliant
Data Sheet
Negotiable
