Product Summary

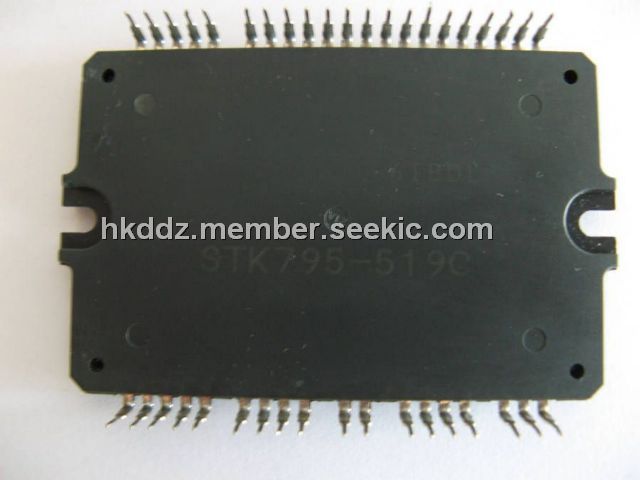

The STK795-519C is a chopper type voltage regulator.

Parametrics

STK795-519C absolute maximum ratings: (1)maximum DC input voltage: 40V; (2)maximum output current: 3A; (3)operating case temperature: 105℃; (4)junction temperature: 150℃; (5)storage temperature: -30 to +105℃.

Features

STK795-519C features: (1)self-oscillation type chopper regulator power IC using Sanyo’s original IMST substrate.; (2)functional trimming is used to set 5V output with high accuracy; (3)cutoff function to cut off output voltage by external signal; (4)contains a transistor for overcurrent protector and possible to set the protection leve; externally.

Diagrams

STK795-519C block diagram
