Product Summary

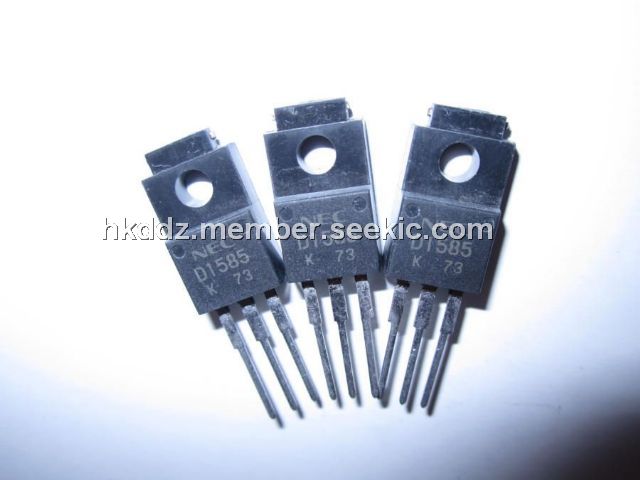

The 2SD1585 is an NPN general purpose transistor designed for use in audio frequency power amplifier.
Parametrics
2SD1585 absolute maximum ratings: (1)storage temperature: -55 to 150℃; (2)junction temperature: 150℃; (3)total power dissipation: 2.0W; (4)collector to base votlage, VCBO: 60V; (5)collector to emitter votlage, VCEO: 60V; (6)emitter to base voltage, VEBO: 7.0V; (7)collector current, IC: 3.0A; (8)base current, IB: 0.6A.
Features
2SD1585 features: (1)easy mount by eliminating sheet and bushing; (2)complementary to the 2SB1094.

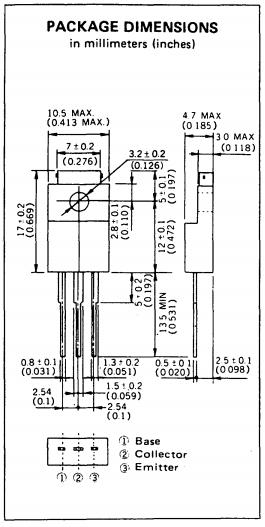

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SD1585 |
Other |
|
Data Sheet |
Negotiable |
|
||||
