2SK3934

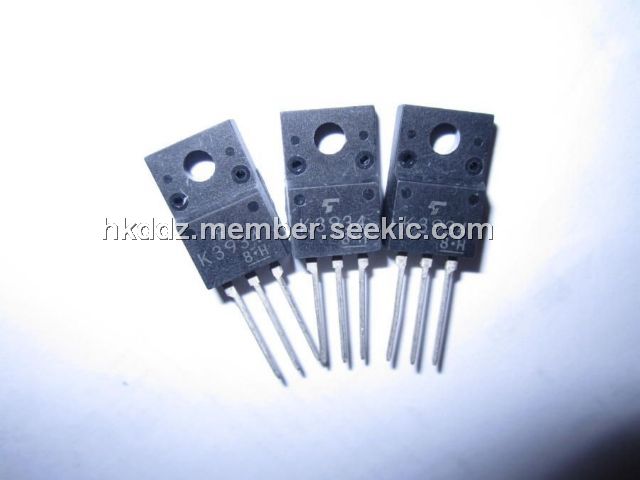

field effect transistor, TO220F, 500 V, 50 W, 15 A, 2SK3934, Toshiba

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~0.75 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.65~0.75

PartNumber:: 2SK3934

Brand:: Toshiba Semiconductor - Toshiba | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Juven You's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-20

From Other Seller

Part Number:2SK3934
US $0.65 - 0.75
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 2SK3934 is a field effect transistor. It is suitable for regulator applications.

Parametrics

2SK3934 absolute maximum ratings: (1)Drain-source voltage, VDSS: 500 V; (2)Drain-gate voltage (RGS = 20 kW), VDGR: 500 V; (3)Gate-source voltage, VGSS: ±30 V; (4)Drain power dissipation (Tc = 25℃), PD: 50 W; (5)Single pulse avalanche energy, EAS: 1.08 J; (6)Avalanche current, IAR: 15 A; (7)Repetitive avalanche energy, EAR: 5.0 mJ; (8)Channel temperature, Tch: 150℃; (9)Storage temperature range, Tstg:-55~150℃.

Features

2SK3934 features: (1)Low drain-source ON resistance: RDS (ON) = 0.23Ω (typ.); (2)High forward transfer admittance: |Yfs| =8.2 S (typ.); (3)Low leakage current: IDSS = 100 μA (VDS = 500 V); (4)Enhancement-mode: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA).
