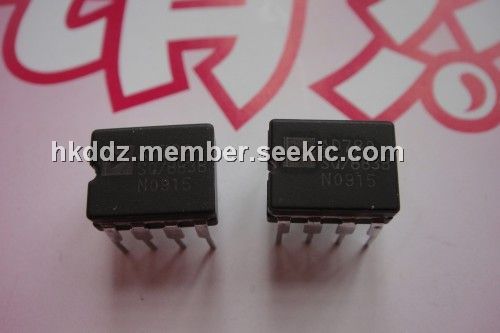

Product Summary
The AD780SQ/883 is an ultrahigh precision bandgap reference voltage which provides a 2.5 V or 3.0 V output from inputs between 4.0 V and 36 V. Low initial error and temperature drift combined with low output noise and the ability to drive any value of capacitance make the AD780SQ/883 the ideal choice for enhancing the performance of high resolution ADCs and DACs and for any general purpose precision reference application. A unique low headroom design facilitates a 3.0 V output from a 5.0 V ± 10% input, providing a 20% boost to the dynamic range of an ADC, over performance with existing 2.5 V references.
Parametrics
AD780SQ/883 absolute maximum ratings: (1)VIN to Ground: 36 V; (2)Trim Pin to Ground: 36 V; (3)Temp Pin to Ground: 36 V; (4)Power Dissipation (25℃): 500 mW; (5)Storage Temperature: –65 to +150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)Output Protection: Output safe for indefinite short to ground and momentary short to VIN; (8)ESD Classification: Class 1 (1000 V).
Features
AD780SQ/883 features: (1)Pin-Programmable 2.5 V or 3.0 V Output; (2)Ultralow Drift: 3 ppm/℃ max; (3)High Accuracy: 2.5 V or 3.0 V ± 1 mV max; (4)Low Noise: 100 nV/√Hz; (5)Noise Reduction Capability; (6)Low Quiescent Current: 1 mA max; (7)Output Trim Capability; (8)Plug-In Upgrade for Present References; (9)Temperature Output Pin; (10)Series or Shunt Mode Operation (±2.5 V, ±3.0 V).

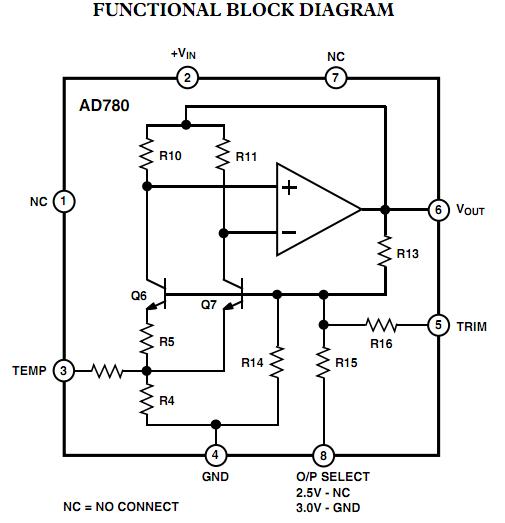

Diagrams
 |
