Product Summary

The 40L45CW is a center tap Schottky rectifier. It has been optimized for very low forward voltage drop with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150℃ junction temperature. Typical applications of the 40L45CW are in parallel switching power supplies.

Parametrics

40L45CW absolute maximum ratings: (1)Maximum average forward current, IF(AV): 20A; (2)Maximum peak one cycle non-repetitive surge current per leg, IFSM: 1240A; (3)Non-repetitive avalanche energy per leg, EAS: 20 mJ; (4)Repetitive avalanche current per leg, IAR: 3A.

Features

40L45CW features: (1)150℃ TJ operation; (2)Center tap TO-247 package; (3)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (4)Very low forward voltage drop; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability; (7)Designed and qualified for industrial level.

Diagrams

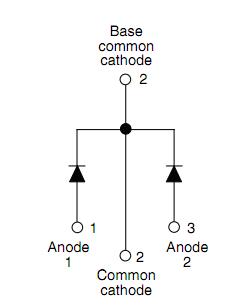

40L45CW block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

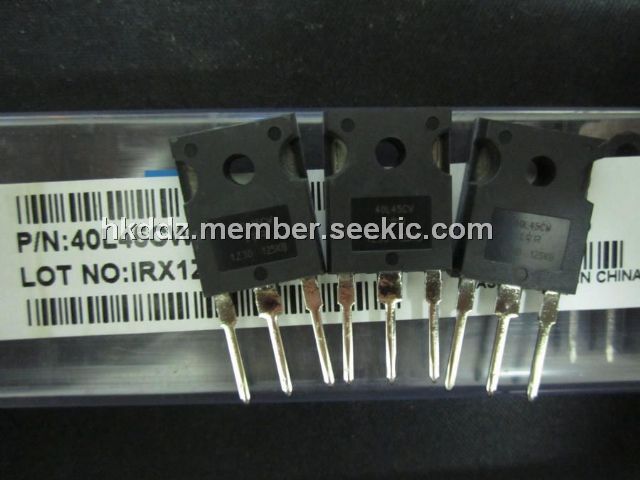

40L45CW
40L45CW
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 40 Amp 45 Volt Common Cathode
Data Sheet
Negotiable
40L45CWPBF
40L45CWPBF

DIODE SCHOTTKY 45V 20A TO247AC
