Product Summary

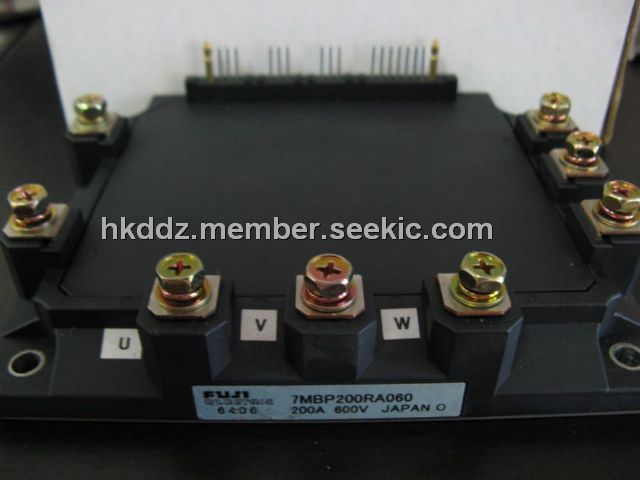

The 7MBP200RA060 is an IGBT.
Parametrics
7MBP200RA060 absolute maximum ratings: (1)DC bus voltage, VDC: 0 to 450V; (2)DC bus voltage (surge), VDC(surge): 0 to 500V; (3)DC bus voltage (short operating), VSC: 200 to 400V; (4)Collector-Emitter voltage, VCEO: 0 to 600V; (5)DB Reverse voltage, VR: 600V; (6)Storage temperature, Tstg: -40 to 125℃; (7)Operating case temperature, Top: -20 to 100℃.
Features
7MBP200RA060 features: (1)Temperature protection provided by directly detecting the junction; (2)temperature of the IGBTs; (3)Low power loss and soft switching; (4)High performance and high reliability IGBT with overheating protection; (5)Higher reliability because of a big decrease in number of parts in built-in control circuit.

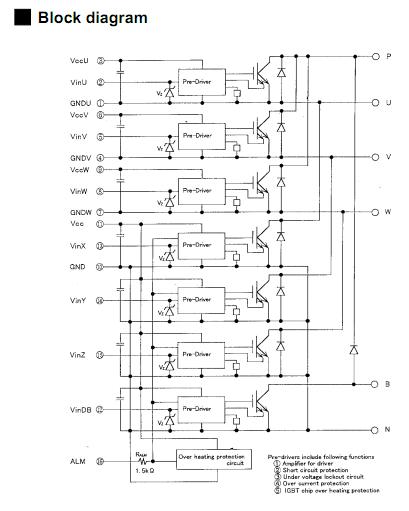

Diagrams
 |
