Product Summary

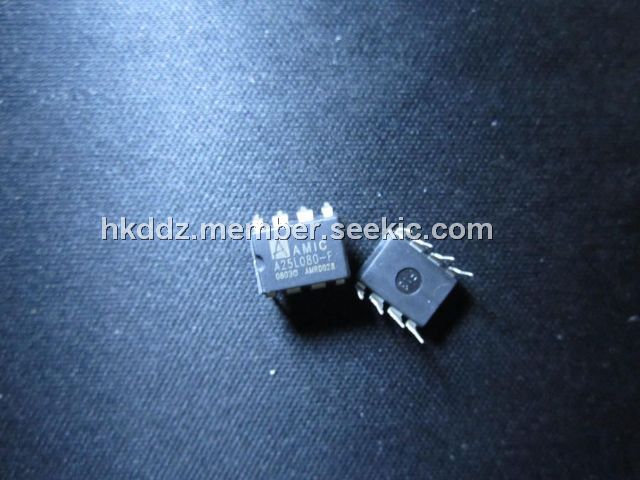

The A25L080-F is a 16M bit Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.
Parametrics
A25L080-F absolute maximum ratings: (1)Storage Temperature (TSTG): -65 to + 150℃; (2)Lead Temperature during Soldering: -0.6V to VCC+0.6V; (3)Transient Voltage (<20ns) on Any Pin to Ground Potential: -2.0V to VCC+2.0V; (4)Supply Voltage (VCC): -0.6V to +4.0V; (5)Electrostatic Discharge Voltage (Human Body model) (VESD): -2000V to 2000V.
Features
A25L080-F features: (1)Family of Serial Flash Memories; (2)Flexible Sector Architecture with 4KB sectors; (3)Page Program (up to 256 Bytes) in 0.8ms (typical); (4)2.7 to 3.6V Single Supply Voltage; (5)Dual input / output instructions resulting in an equivalent clock frequency of 200MHz; (6)SPI Bus Compatible Serial Interface; (7)100MHz Clock Rate (maximum); (8)Deep Power-down Mode 5μA (Max).
Diagrams
 |
 A25L80P |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
A25L512 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
A25L40P |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
A25L20P |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
A25L16P |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
A25L080 |
Other |
|
Data Sheet |
Negotiable |
|
||||
