Product Summary

The A5W-K is a miniature relay of 2 poles——1 to 2A for signal switching.

Parametrics

A5W-K absolute maximum ratings: (1)Arrangement: 2 form C (DPDT); (2)Material: Gold overlay silver alloy; (3)Resistance (initial): Maximum 50 mW (at 1 A 6 VDC); (4)Rating (resistive): 0.5 A 125 VAC or 1 A 30 VDC; (5)Maximum Carrying Current: 2 A; (6)Maximum Switching Power: 62.5 AV/30 W; (7)Maximum Switching Voltage: 250 VAC, 220 VDC; (8)Maximum Switching Current: 2 A; (9)Minimum Switching Load: 0.01 mA 10 mVDC.

Features

A5W-K features: (1)Extremely low profile and light weight; (2)UL, CSA recognized; (3)Conforms to FCC rules and regulations part 68; (4)High reliability—bifurcated contacts; (5)Wide operating range; (6)DIL pitch terminals; (7)Plastic sealed type; (8)Latching version available; (9)RoHS compliant since date code: 0437B8.

Diagrams

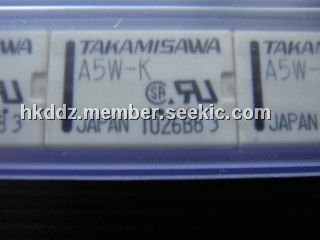

A5W-K diagram
