Product Summary

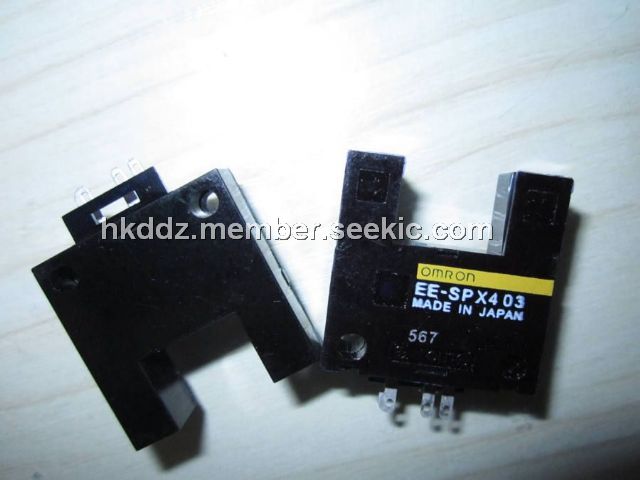

The EE-SPX403 is a Broad Slot-type Photomicrosensor.

Parametrics

EE-SPX403 absolute maximum ratings: (1)Operating: -10 to +55℃; (2)Storage: -25 to +65℃; (3)Supply voltage 12 to 24 VDC ±10%, ripple (p-p): 5% max; (4)Current consumption Average: 15 mA max., Peak: 50 mA max; (5)Response frequency: 100 Hz min.

Features

EE-SPX403 features: (1)Easy adjustment and optical axis monitoring with a light indicator; (2)Connection possible with Programmable Controllers (PLCs); (3)Easy-to-wire connector assures ease of maintenance; (4)Wide operating voltage range: 12 to 24 VDC.

Diagrams

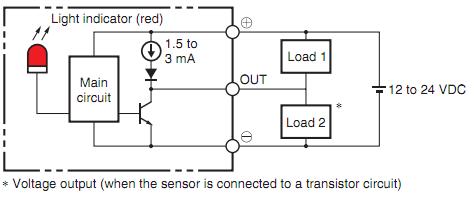

EE-SPX403 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EE-SPX403
EE-SPX403
Omron Electronics Inc-IA Div
OPTO SENSOR 13MM SLOT LIGHT-ON
Data Sheet
1-25: $30.86
25-50: $27.43
50-100: $24.69
100-250: $23.32
250-500: $20.57
EE-SPX403-
EE-SPX403-
Omron Industrial
Optical Switches, Transmissive, with Phototransistor Output TRANS LIGHT-ON
Data Sheet
Negotiable
EE-SPX403-N
EE-SPX403-N
Omron Industrial
Optical Switches, Transmissive, with Phototransistor Output 13mm P Modulated SLOT PMS L-On
Data Sheet
0-1: $33.16
1-25: $31.31
25-50: $26.71
50-100: $25.73
EE-SPX403N
EE-SPX403N

OPTO SENSOR 13MM SLOT LIGHT-ON
Data Sheet
0-1: $39.93
1-25: $35.94
25-50: $31.94
50-100: $28.75
100-250: $27.15
250-500: $23.96
500-1000: $21.56
