Product Summary

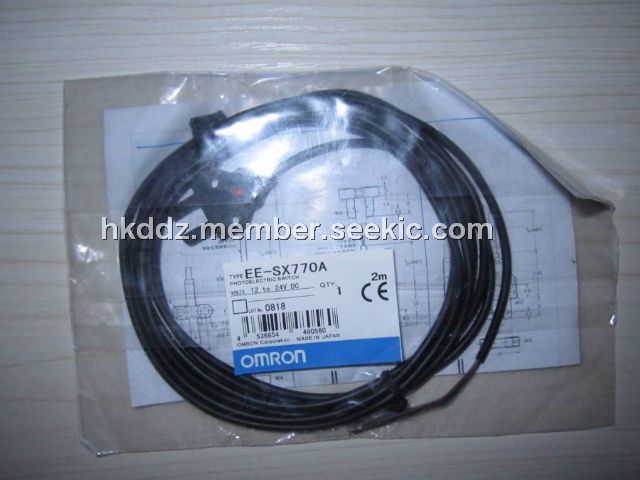

The EE-SX770A is a Photomicrosensor with Cable (Non-modulated).

Parametrics

EE-SX770A absolute maximum ratings: (1)Sensing Distance 0.197" (5mm); (2)Sensing Method Transmissive; (3)Output Configuration NPN - Open Collector/Dark-ON; (4)Mounting Type Chassis Mount, M3 Screw; (5)Current - Supply 35mA; (6)Voltage - Supply 5 V ~ 24 V.

Features

EE-SX770A features: (1)Compact, thin profile enables dense mounting; (2)Indicator is visible from both sides; (3)Wide operating voltage range: 5 to 24 VDC.

Diagrams

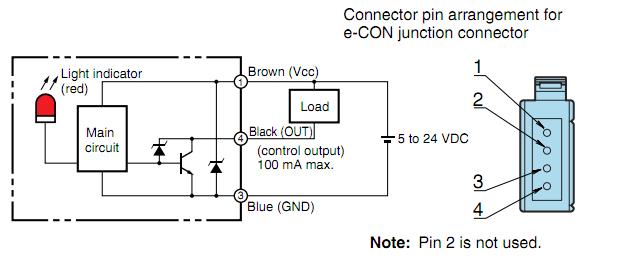

EE-SX770A block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EE-SX770A
EE-SX770A
Omron Industrial
Optical Switches, Transmissive, with Phototransistor Output SLOT PMS NPN D-ON
Data Sheet
0-1: $24.01
1-25: $23.29
25-50: $22.60
50-100: $21.88
