Product Summary

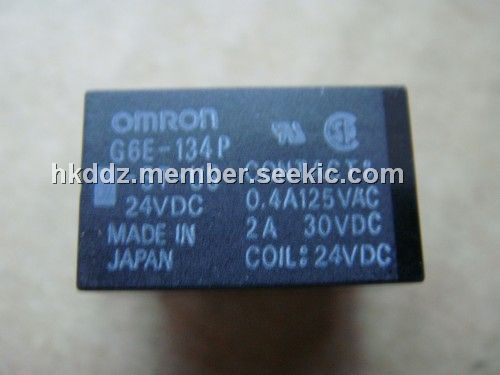

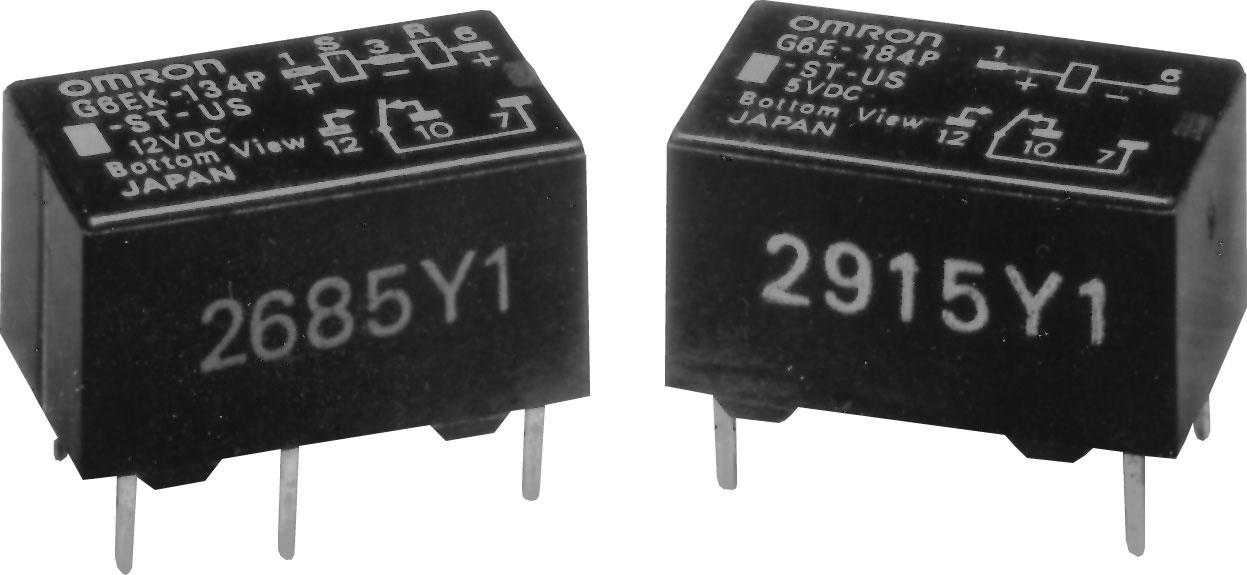

The G6E-134P-ST-US is a Subminiature, Sensitive Signal Relay.

Parametrics

G6E-134P-ST-US absolute maximum ratings: (1)Rated load: 0.40 A at 125 VAC, 2 A at 30 VDC; (2)Contact material: Ag (Au clad); (3)Carry current: 3 A; (4)Max. operating voltage: 250 VAC, 220 VDC; (5)Max. operating current: 3 A; (6)Max. switching capacity: 50 VA, 60 W; (7)Min. permissible load: 10 A, 10 mVDC.

Features

G6E-134P-ST-US features: (1)Subminiature 7.87 H x 9.91 W x 16 L mm; (2)High sensitivity with pick-up coil power of 98 mW; (3)Surge withstand voltage meets FCC Part 68 requirements; (4)Unique moving loop armature reduces relay size, magnetic interference, and contact bounce time; (5)Bifurcated crossbar contact assures high reliability; (6)Single and Dual coil latching versions available; (7)Fully sealed construction; (8)RoHS Compliant.

Diagrams

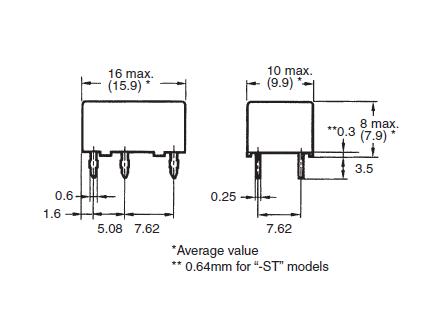

G6E-134P-ST-US diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G6E-134P-ST-US DC3
G6E-134P-ST-US DC3

Omron Electronics

Low Signal Relays - PCB 2A Relay PCB SPDT 3VDC

Data Sheet

0-1: $2.96
1-25: $2.66
25-50: $2.36
50-100: $2.30
G6E-134P-ST-US-DC12
G6E-134P-ST-US-DC12

Omron Electronics

Low Signal Relays - PCB NL 200mW SPDT 12VDC

Data Sheet

0-1: $2.50
1-25: $2.34
25-50: $2.24
50-100: $2.14
G6E-134P-ST-US-DC5
G6E-134P-ST-US-DC5

Omron Electronics

Low Signal Relays - PCB NL 200mW SPDT 5VDC

Data Sheet

0-1: $3.24
1-25: $2.92
25-50: $2.66
50-100: $2.40
G6E-134P-ST-US-DC24
G6E-134P-ST-US-DC24

Omron Electronics

Low Signal Relays - PCB NL 200mW SPDT 24VDC

Data Sheet

0-1: $2.95
1-25: $2.75
25-50: $2.63
50-100: $2.43
G6E-134P-ST-US-DC48
G6E-134P-ST-US-DC48

Omron Electronics

Low Signal Relays - PCB LOW SIGNAL RELAY

Data Sheet

0-1: $6.67
1-25: $6.01
25-50: $5.46
50-100: $5.00
G6E-134P-ST-US-DC3
G6E-134P-ST-US-DC3


RELAY GENERAL PURPOSE SPDT 2A 3V

Data Sheet

0-1: $3.34
1-25: $3.00
25-50: $2.67
50-100: $2.40
100-250: $2.27
250-500: $2.00
500-1000: $1.80
G6E-134P-ST-US-DC9
G6E-134P-ST-US-DC9

Omron Electronics

Low Signal Relays - PCB NL 200mW SPDT 9VDC

Data Sheet

0-1: $2.87
1-25: $2.83
25-50: $2.80
50-100: $2.72
G6E-134P-ST-US-DC6
G6E-134P-ST-US-DC6

Omron Electronics

Low Signal Relays - PCB LOW SIGNAL RELAY

Data Sheet

0-1: $4.80
1-25: $4.33
25-50: $3.93
50-100: $3.60
