Product Summary

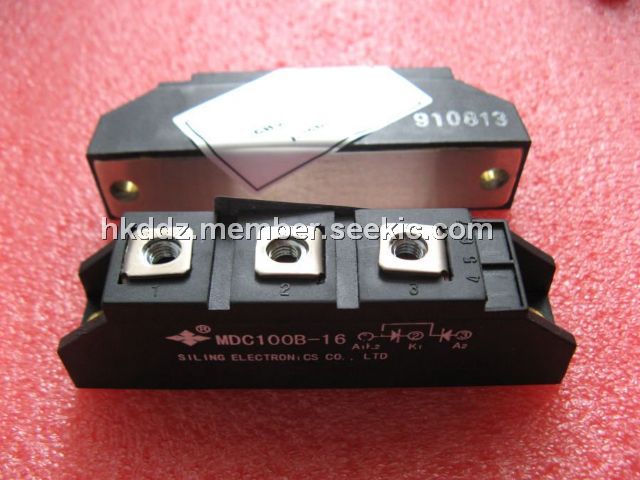

The MDC100B-16 is a Power Diode Module designed for various rectifier circuits. The MDC100B-16 has two diode chips connected in series in 25mmwidth package. The applications of the MDC100B-16 are various rectifiers Battery chargers DC motor drives.

Parametrics

MDC100B-16 absolute maximum ratings: (1)IF(AV): 100 A; (2)IFSM: 2000 A; (3)i2t: 20000 A2S; (4)Viso: 2500 V; (5)Tvj: -40 to 150℃; (6)Tstg: -40 to 125℃; (7)Weight: 180g.

Features

MDC100B-16 features: (1)Wide voltage rating up to 1600V is available for various input voltages; (2)Isolated mounting base; (3)Two elements in a package for simple(single and three phase) bridge connections; (4)High surge current capability.

Diagrams

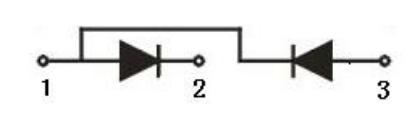

MDC100B-16 block diagram
