Product Summary

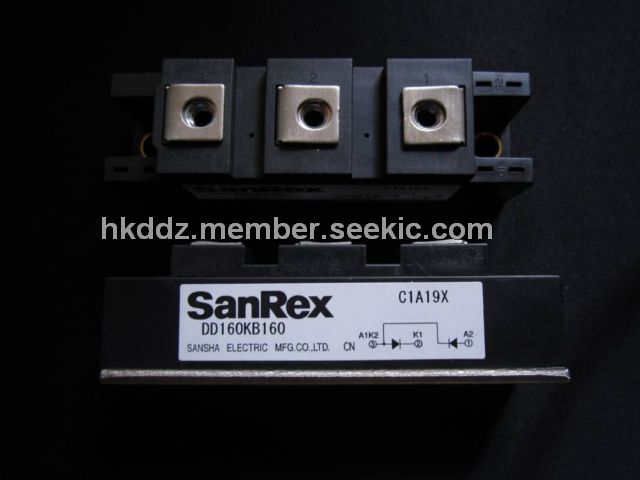

The DD160KB160 is a Power Diode Module designed for various rectifier circuits. The DD160KB160 has two diode chips connected in series and the mounting base is electrically isolated from elements for simple heatsink construction. Wide voltage rating up to, 1600V is available for various input voltages. The applications of the DD160KB160 include Various rectifiers, Battery chargers, DC motor drives.
Parametrics
DD160KB160 absolute maximum ratings: (1)VRRM, Repetitive Peak Reverse Voltage: 1600V; (2)VRSM, Non-Repetitive Peak Reverse Voltage: 1700V; (3)IF(AV), Average Forward Current, Single phase, half wave, 180℃ conduction, Tc=90℃: 160 A; (4)IF(RMS), R.M.S. Forward Current, ingle phase, half wave, 180℃ conduction, Tc=90℃: 250A; (5)IFSM, Surge Forward Current, 1/2cycle, 60HZ, peak value, non-repetitive: 3200A; (6)I2t, Value for one cycle of surge current: 42600 A2S; (7)Tj, Operating Junction Temperature: -40 to +150℃; (8)Tstg, Storage Temperature: -40 to +125℃; (9)VISO, Isolation Breakdown Voltage(R.M.S), A.C. 1minute: 2500 V.
Features
DD160KB160 features: (1)Isolated mounting base; (2)Two elements in a package for simple (single and three phase) bridge connections; (3)Highly reliable glass passivated chips; (4)High surge current capability.

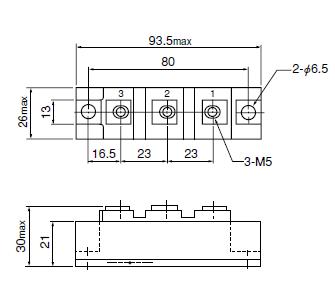

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DD160KB160 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
