Product Summary

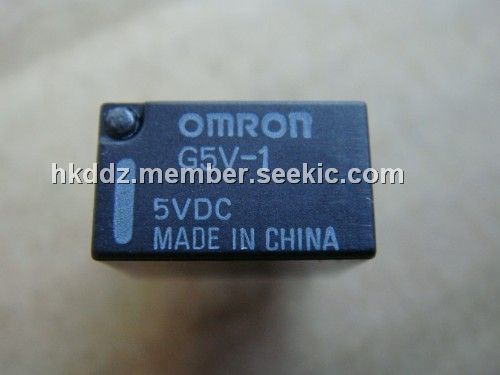

The G5V-1 5VDC is an Ultra-miniature, Highly Sensitive SPDT Relay for Signal Circuits.

Parametrics

G5V-1 5VDC absolute maximum ratings: (1)Rated voltage: 3 VDC; (2)Rated current: 50 mA; (3)Coil resistance: 60 W; (4)Coil inductance (H) (ref. value): Armature OFF: 0.05, Armature ON: 0.11; (5)Must operate voltage: 80% max. of rated voltage; (6)Must release voltage: 10% min. of rated voltage; (7)Max. voltage: 200% of rated voltage at 23℃; (8)Power consumption: Approx. 150 mW.

Features

G5V-1 5VDC features: (1)Ultra-miniature at 12.5 x 7.5 x 10 mm (L x W x H); (2)Wide switching power of 1 mA to 1 A; (3)High sensitivity: 150-mW nominal coil power; (4)Fully sealed construction; (5)International 2.54-mm terminal pitch; (6)Conforms to FCC Part 68 requirements for coil to contacts.

Diagrams

G5V-1 5VDC Internal Connections diagram
