Product Summary

The G6K-2P-Y 24VDC is low signal relay.

Parametrics

G6K-2P-Y 24VDC absolute maximum ratings: (1)Rated load: 0.3 A at 125VAC; (2)Rated load: 1 A at 30VDC; (3)Contact material: Ag(Au clad); (4)Max. carry current: 1A; (5)Max. operating voltage: 125VAC, 60VDC; (6)Max. operating current: 1A; (7)Max. switching capacity: 37.5VA, 30W; (8)Min. permissible load: 10μA at 10 mVDC.

Features

G6K-2P-Y 24VDC features: (1)Compact fourth generation design, offers excellent board space savings; (2)Available in 2.54 and 3.2 mm coil-contact terminal spacing; (3)-Y models meet 2.5 kV Bellcore surge requirements; (4)Conforms to FCC Part 68; (5)Terminal design based on Omrons successful G6S relay; (6)Available in PCB through-hole, SMT gullwing and SMT inside-L terminals; (7)UL recognized / CSA certified; (8)Available in single coil latching; (9)RoHS Compliant.

Diagrams

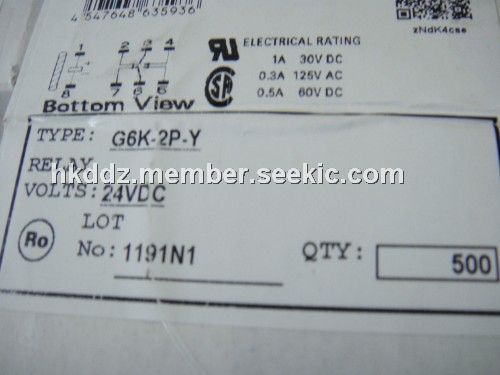

G6K-2P-Y 24VDC dimension

G6K-2F
G6K-2F
